2 MWh Battery Energy Storage System | Modular Container BESS for Industrial & Utility Use
Nominal Battery Voltage：
768V
Battery Type：
LiFePO4
Battery Pack Configuration：
76.8V314Ah
Battery System Configuration：
768V2512Ah
Capacity：
2512Ah
Battery Voltage Range：
672V-876V
Product Features
2. All-in-One Integration- Battery, PCS, EMS, HVAC, and safety systems.
3. Liquid Cooling Technology- High efficiency and temperature balance.
4. Flexible Grid Connection -Works with solar, wind, or diesel hybrid.
5.24/7 Operation-Designed for continuous heavy-duty performance.
Product Models
| *Accessories(Optional) | Technical Parameters HY-H-875KW/2MWh |
|
| AC Side (Grid Tied Scenario) |
AC Output Power | 875kw |
| Max.AC Current | 2600A | |
| Nominal AC Voltage/Range | 400V | |
| Nominal Grid Frequency/Range | 50HZ/60HZ | |
| Harmonic(THD) | <3% | |
| Power Factor at Nominal Power/Adjustable | ·-1~1 | |
| Cooling Concept of PCS Chamber | Air Cooling/Liquid Cooling | |
| Seamless Switching from Grid to BESS In Case of Power outage |
3min | |
AC Side(Microgrid Scenairo) |
Nominal AC Voltage | 400V |
| Harmonic(THD) | <3%(resistive load) | |
| Nominal Frequency/Range | 50HZ/60HZ | |
| Max.AC Power | 960KW | |
| Batteries | Nominal Battery Voltage | 768V |
| Battery Type | LiFePO4 | |
| Battery Pack Configuration | 76.8V314AH | |
| Battery System Configuration | 768V2512AH | |
| Capacity | 2512AH | |
| Battery Voltage Range | 672V~876V | |
| Max Charging/Discharging Current | 1300A/1300A | |
| Battery Disconnect | Circuit Breaker | |
| Cooling concept of battery chamber | Air Cool | |
| Normal Parameters | Dimension W*D*H | 6058 mm*2438*2896mm |
| Charge/Discharge Rate | 0.5C/0.5C | |
| Depth of Discharge | ≥95% | |
| Life Cycle | 8000+ | |
| Degree of Protection | IP54 | |
| System Efficiency | 98% | |
| Fire Protection System | Manual and Automatic Integrated | |
| Allowed Ambient Temperature | -30℃~55℃ | |
| Allowed Relative Humidity | 0%~95% | |
| Enclosure Corrosion Resistance Level | C5 | |
| Weight | ~11.8T | |
| SPD | In≥20kA(8/20μs) | |
| Lifting Options | Bottom Lifting | |
| Scalability | 1~4units/SET | |
| Accessories (Optional) | 1MW on-grid inverter | |
| 1.5MW ATS | ||
| 1000KVA transformer | ||
| Dynamic Intelligent Monitoring System |
Display | PC/control interface |
| Communication | RS485 | |
| Communication Protocols | Modbus TCP/IP | |
| Remote Control System | EMS cloud platform | |
Utility-Grade Containerized Energy Storage Solution
The 2 MWh liquid-cooled energy storage system delivers reliable large-scale power for factories, renewable projects, and industrial parks. Its integrated PCS and EMS enable intelligent power scheduling and real-time monitoring. Built with A-grade LiFePO₄ cells, it provides long life, superior safety, and consistent performance under demanding conditions.
TOU arbitrage for commercial users
PV farm storage support
Microgrid integration
EV showroom solar + storage + charging
Energy storage for mid-size factories/supermarkets
Factory Real Product Photos

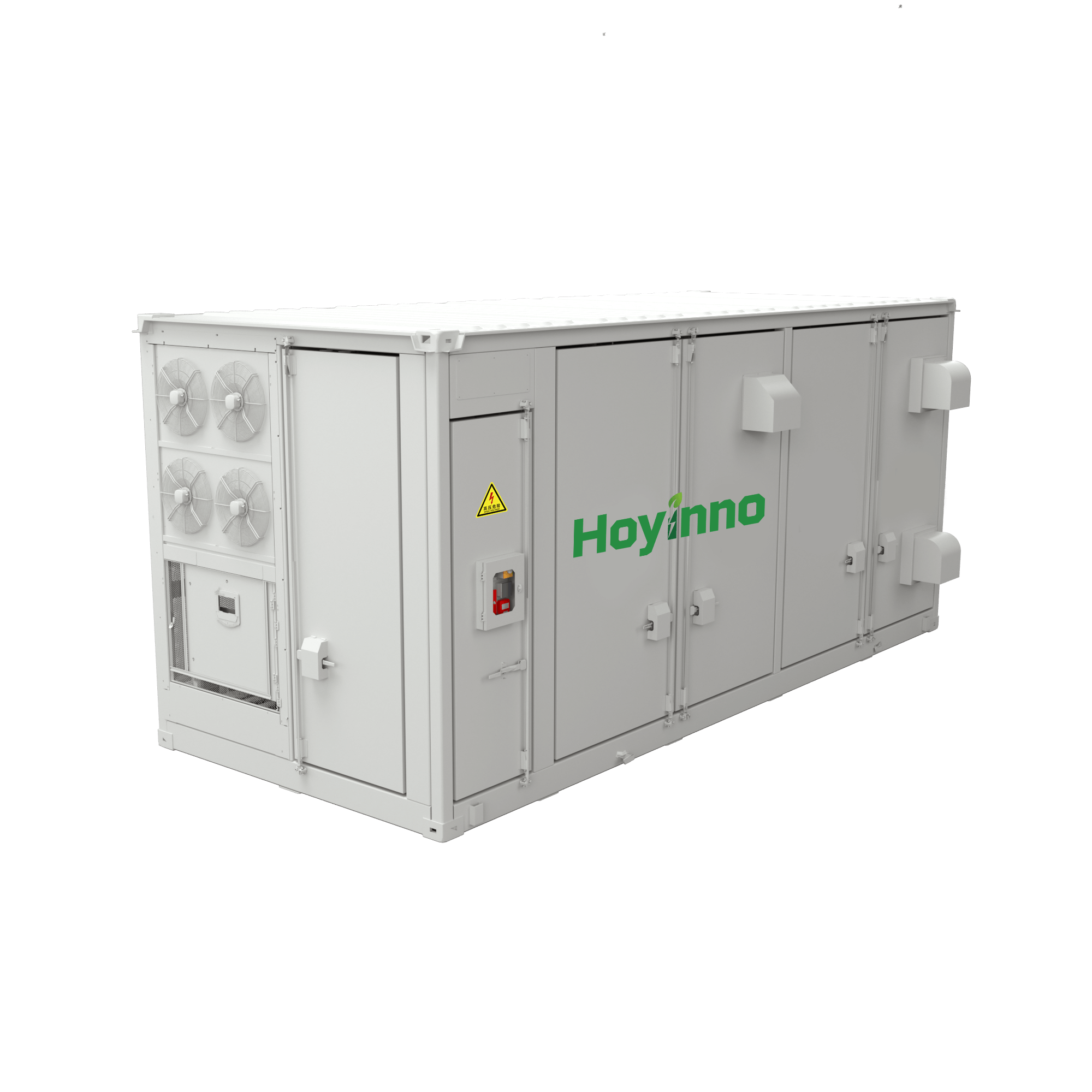

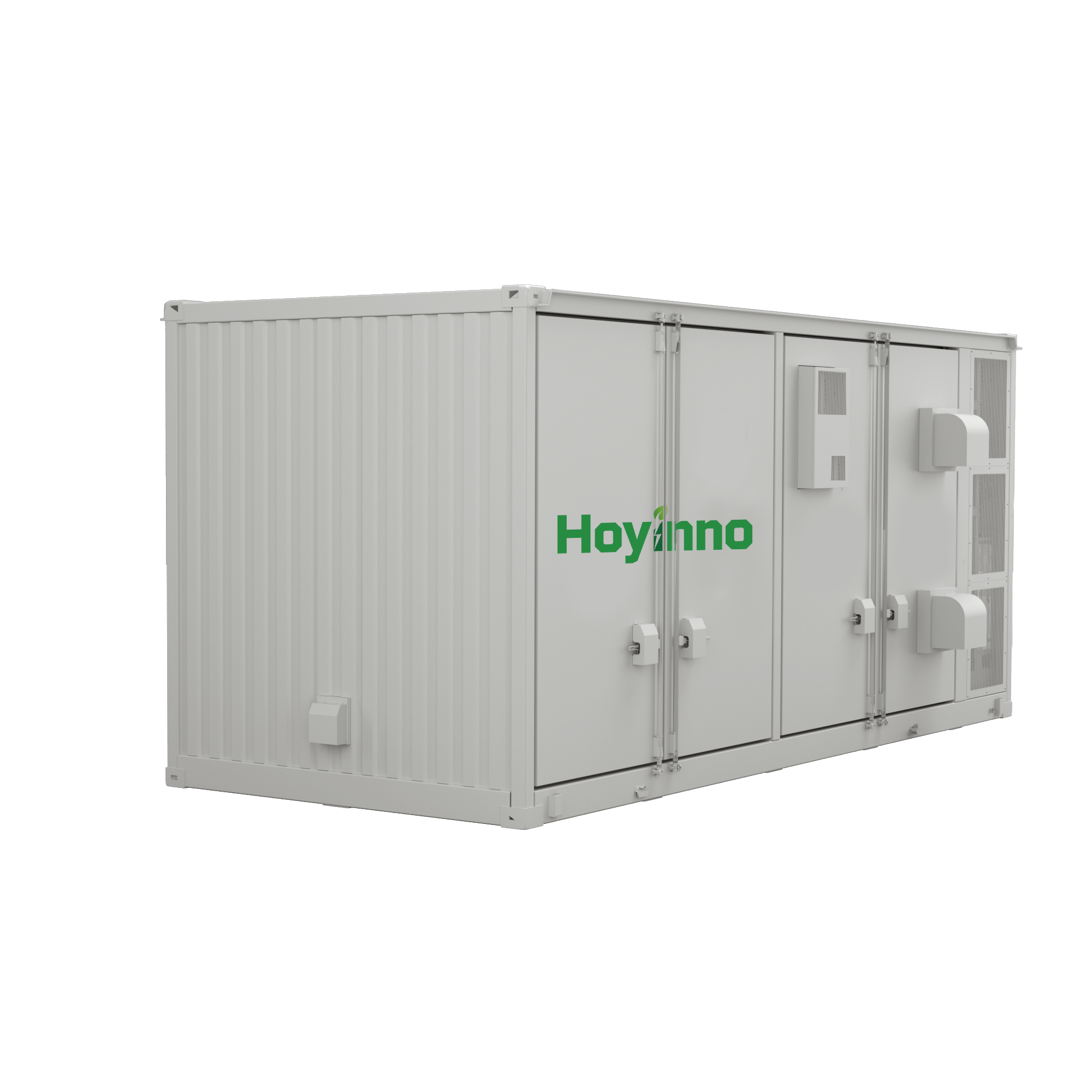

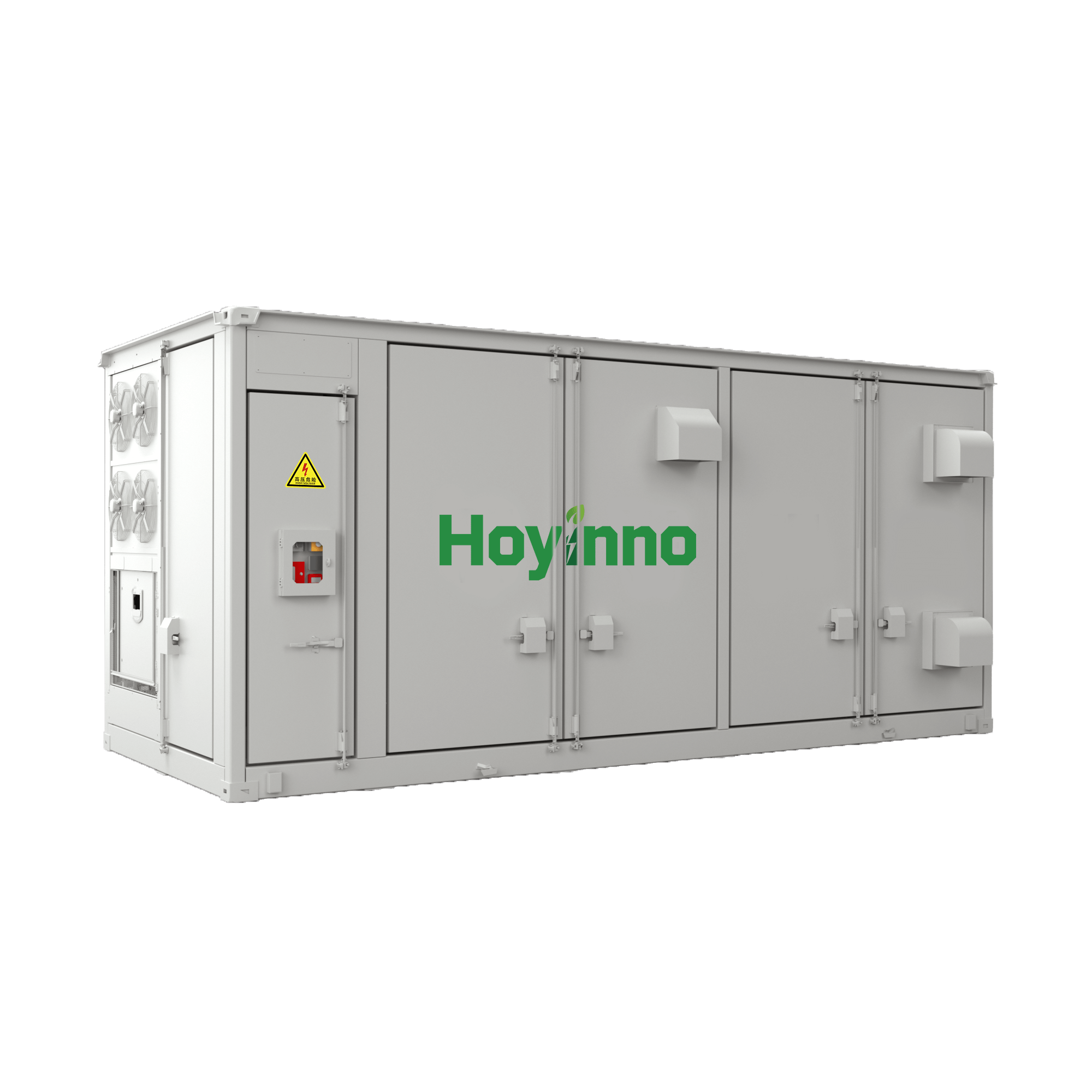

Container Energy Storage
Energy Storage Converter
Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: What kind of company are you?
A: We are a professional energy storage system manufacturer, specializing in customized BESS solutions. Our services cover product R&D, system design, integration, production, and technical support — all from our own factory.
Q2: Can you provide system integration and customized solutions?
A: Yes. We deliver fully integrated systems that include batteries, PCS, EMS, fire suppression, and cooling systems — all pre-assembled and tested before shipment. Voltage, capacity, and configurations can be customized to your project needs.
Q3: What is the typical delivery time for your systems?
A: Standard models usually take 15–25 working days, while custom-built systems are delivered according to the agreed production plan.
Q4: How long is the warranty?
A: Our systems come with a 5-year standard warranty, extendable upon request. All battery modules use Grade A LiFePO₄ cells to ensure long cycle life and high reliability.
Q5: How do you ensure quality and system safety?
A: Every system undergoes multi-level testing and inspection, from cell selection to final integration. Each cabinet includes BMS + EMS intelligent monitoring, fire protection, and temperature control systems to ensure safe and stable operation.
Q6: What payment and contract terms are available?
A: We support T/T, L/C, PayPal, D/P, D/A, and other flexible payment methods. Contract terms — including delivery time, warranty, and liability — are customized for each project.
