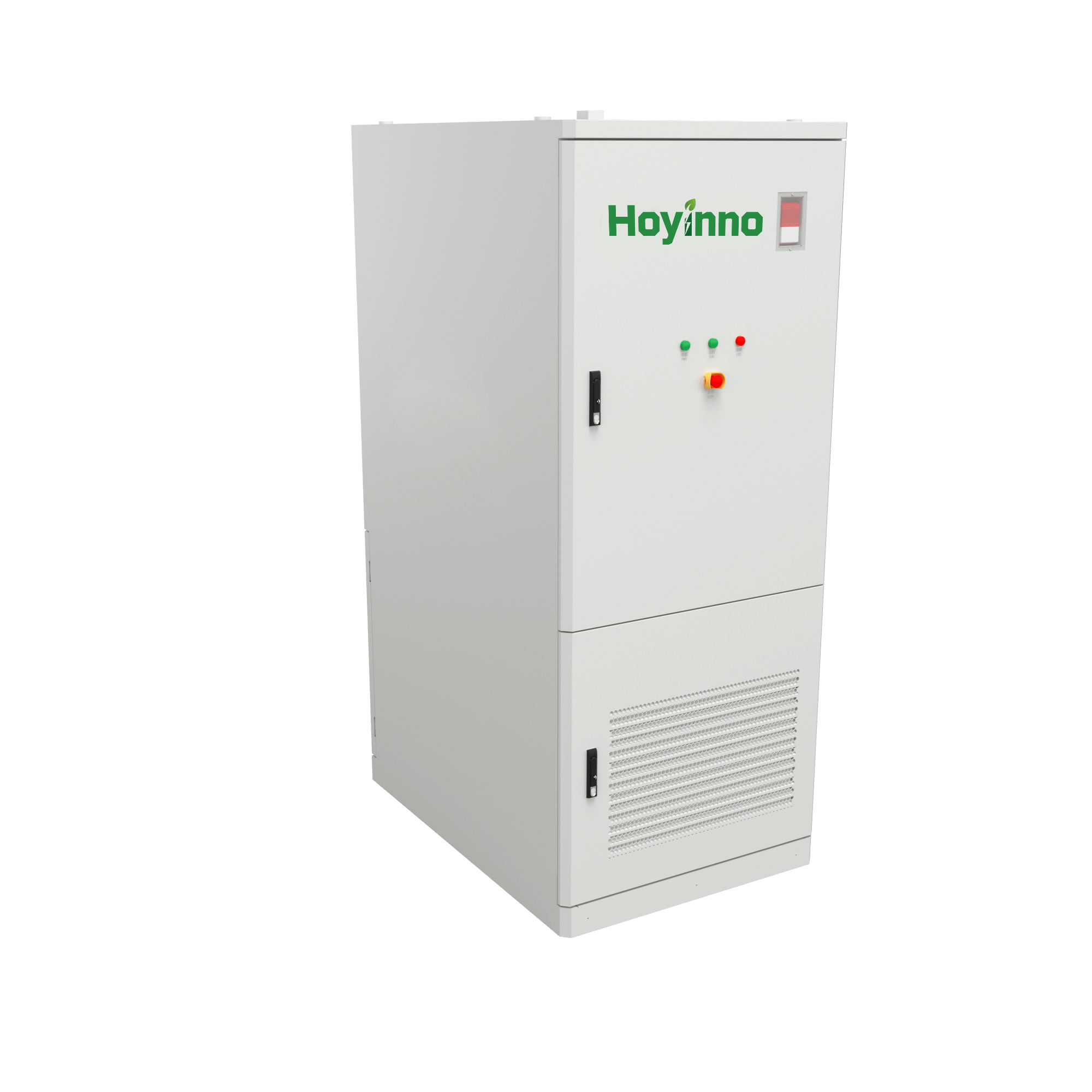

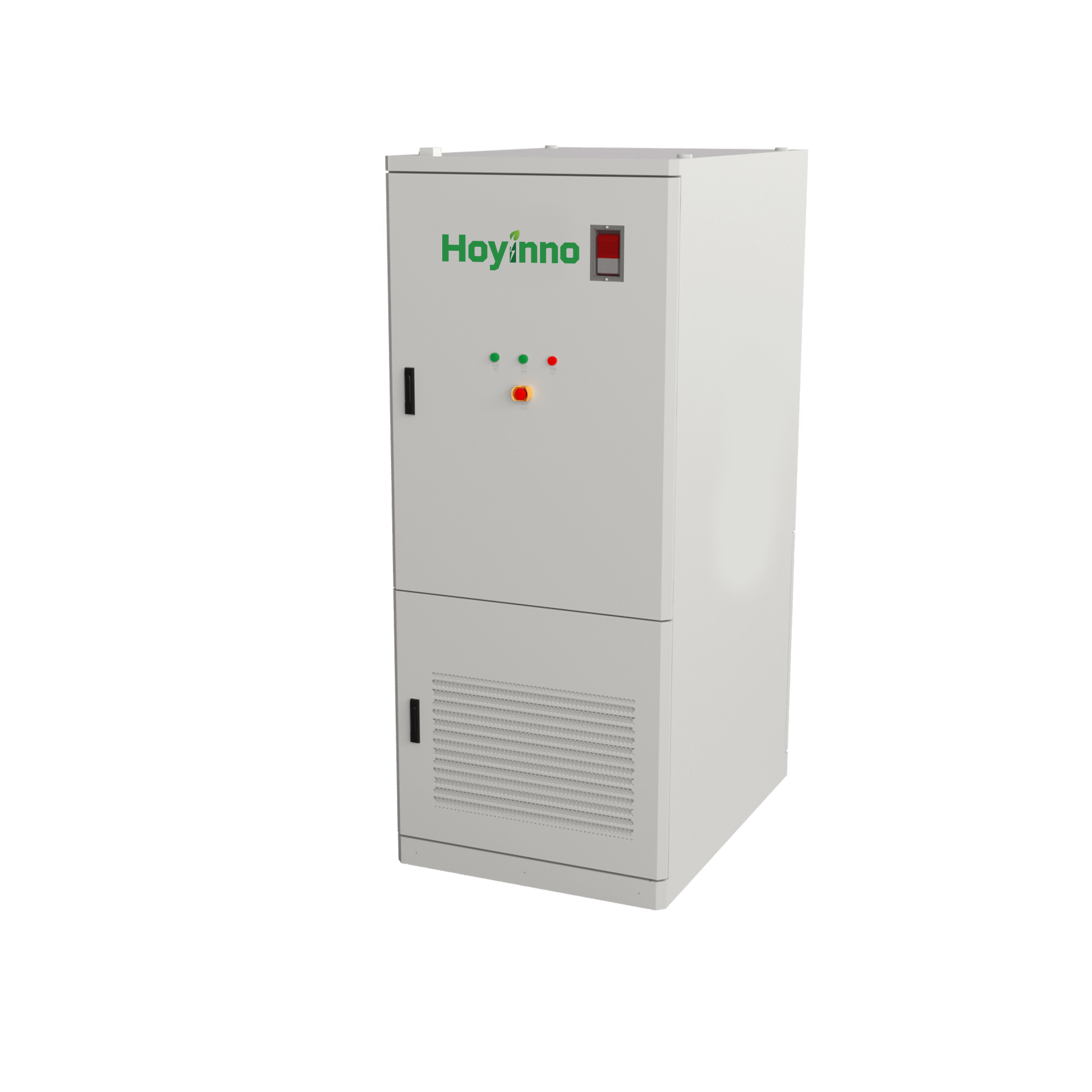

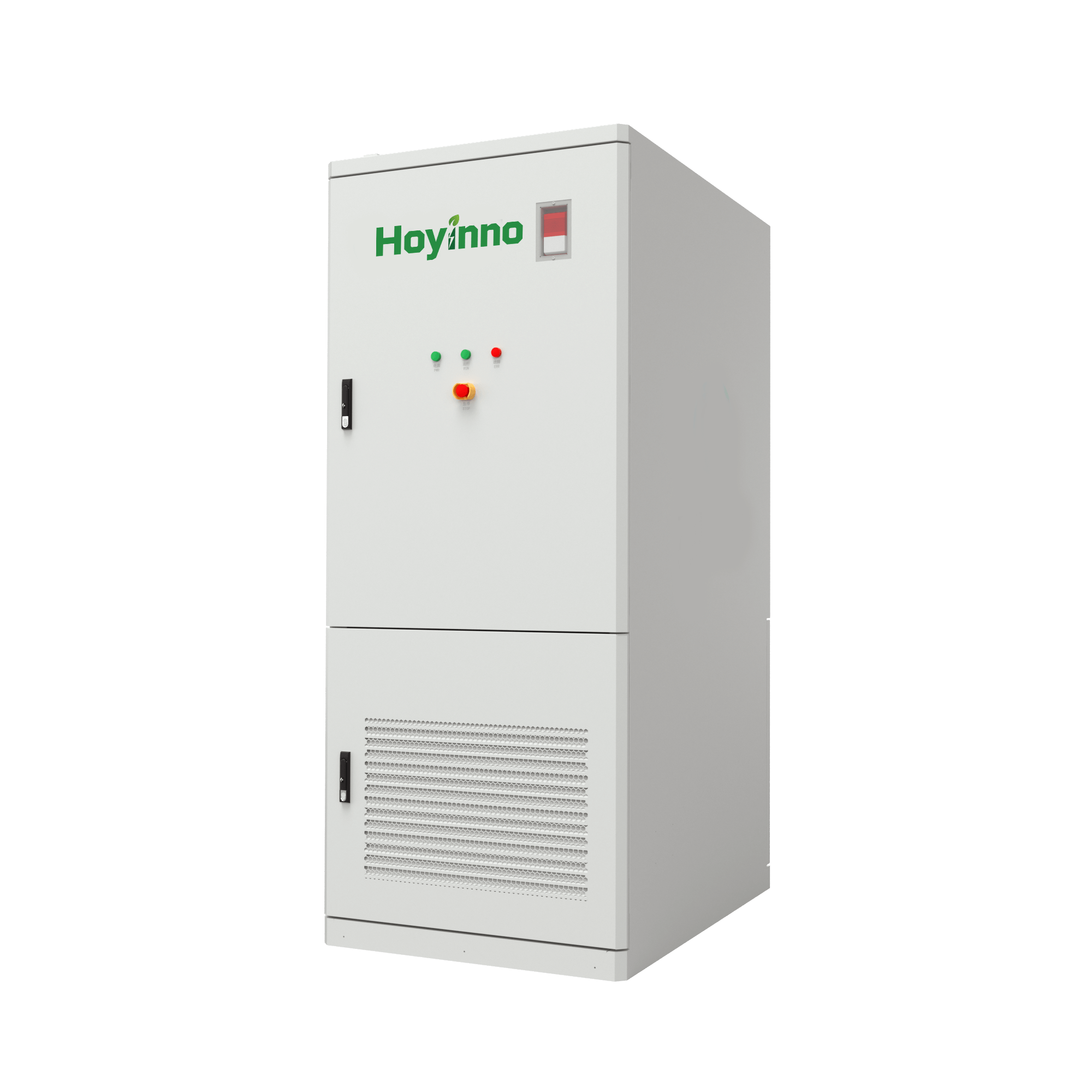

241 kWh Industrial Energy Storage Cabinet | High-Efficiency Liquid-Cooled BESS System
Dim.：
1300×1200×2400 mm
Cycle Life：
8000+
IP：
54
Vnom：
768V
Cell Type：
LiFePO₄
Pack Config：
76.8V314Ah
：
Product Features
1.Industrial-Grade Design-Suitable for factories and data centers.
2.High-Precision Liquid Cooling -Keeps battery performance consistent.
3.Integrated Protection System - Fire suppression & insulation monitoring.
4. High-Power Output-Supports large industrial loads.
5.Remote O&M-Real-time diagnostics and data management.
Product Models
| Technical Parameters | ||
| 241kWh | ||
Batteries |
Nominal Battery Voltage | 768V |
| Battery Type | LiFePO4 | |
| Battery Pack Configuration | 76.8V314AH | |
| Battery System Configuration | 125KW/241kWh | |
| Capacity | 314ah | |
| Battery Voltage Range | 672V~876V | |
| Max Charging/Discharging Current | 200A | |
| Battery Disconnect | Circuit Breaker | |
| Cooling Concept of Battery Chamber | Air Cool | |
| Normal Parameters | Dimension(WDH) | ~1300*1200*2400 |
| Charge/Discharge Rate | 0.5C/0.5C | |
| Depth of Discharge | ≥95% | |
| Life Cycle | 8000+ | |
| Degree of Protection | IP54 | |
| System Efficiency | 98% | |
| Cooling Liquid | Air Cool | |
| Fire Protection System | Manual and Automatic Integrated | |
| Allowed Ambient Temperature | -30℃~55℃ | |
| Allowed Relative Humidity | 0%~95% | |
| Enclosure Corrosion Resistance Level | C5 | |
| Weight | ~2.5T | |
| SPD | In≥20kA(8/20μs) | |
| Lifting Options | Forklift at the bottom and hoisting at the top | |
| Scalability | 1~5units/SET | |
| Accessories (Optional) | 100KW MPPT | |
| 200KVA STS | ||
| 125KVA transformer | ||
| Dynamic Intelligent Monitoring System |
Communication | RS485 |
| Communication Protocols | Modbus TCP/IP | |
| Remote Control System | EMS cloud platform | |
Reliable Industrial Energy Storage for Continuous Operation
The 241 kWh liquid-cooled cabinet provides dependable energy for industrial plants, data centers, and microgrids. It uses premium LiFePO₄ batteries with advanced thermal management to ensure high safety and efficiency. Pre-installed EMS allows real-time monitoring and smart scheduling, enabling 24/7 power stability and reduced operational costs.
Detached homes/apartment PV+ESS
Off-grid power (farms, homestays)
Backup for small monitoring systems
Power for kiosks/convenience stores
Residential PV + storage

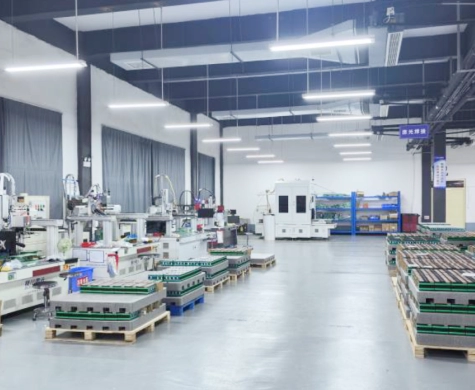

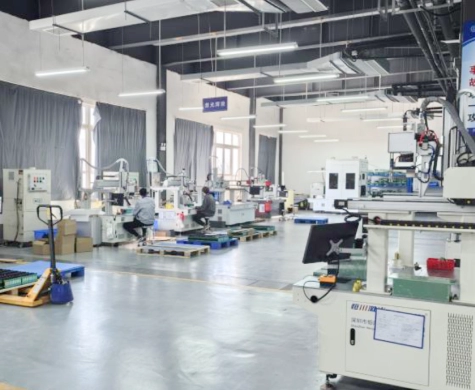

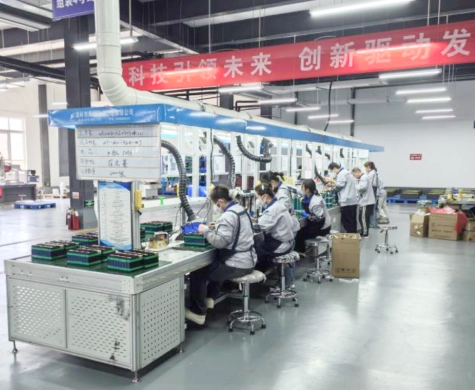

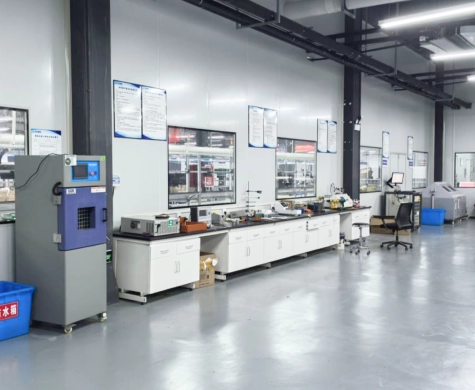

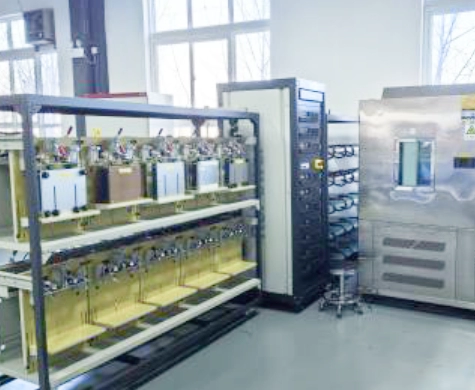

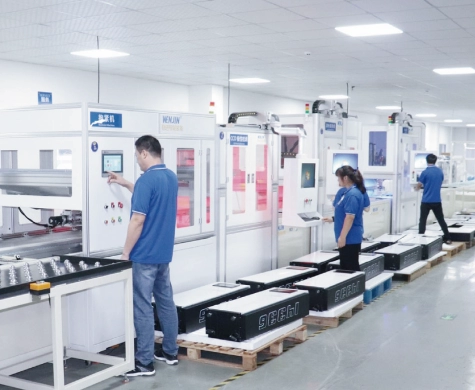

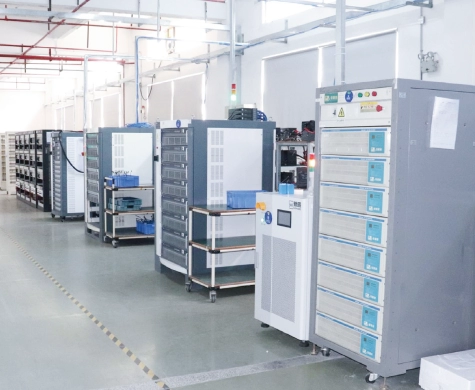

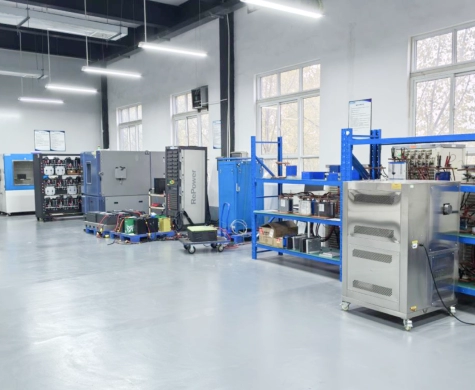

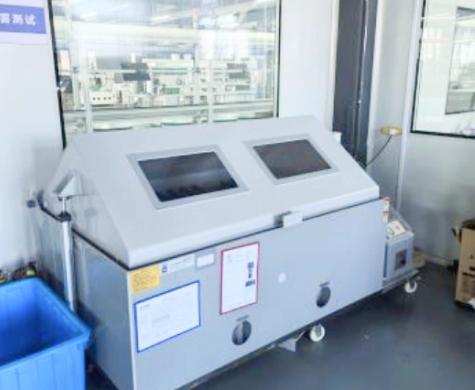

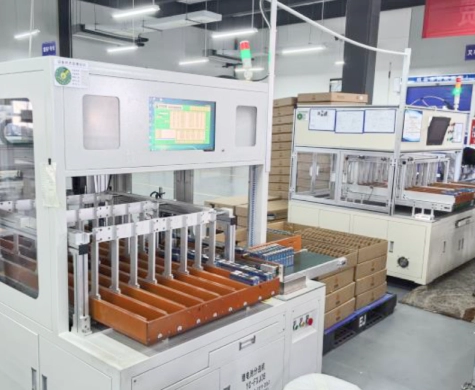

Factory Real Product Photos

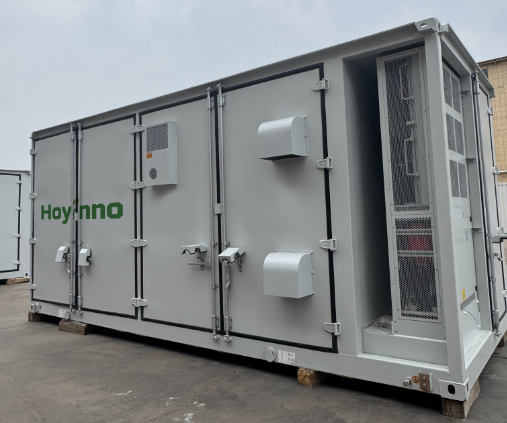

Container Energy Storage
Energy Storage Converter

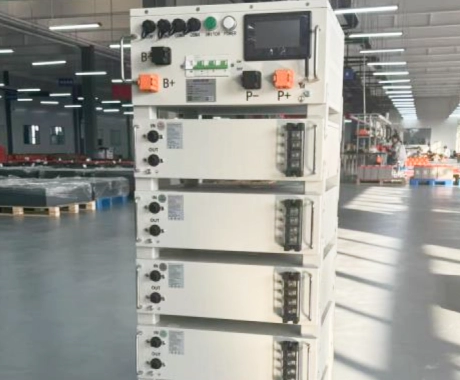

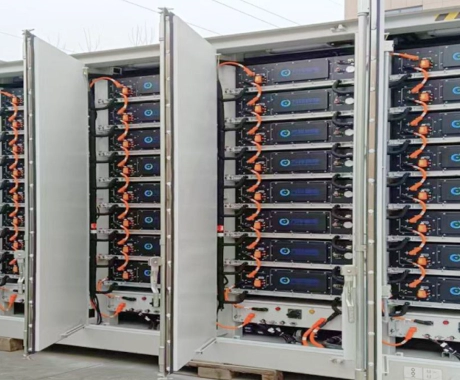

Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: What kind of company are you?
A: We are a professional energy storage system manufacturer, specializing in customized BESS solutions. Our services cover product R&D, system design, integration, production, and technical support ——all from our own factory.
Q2: Can you provide system integration and customized solutions?
A: Yes. We deliver fully integrated systems that include batteries, PCS, EMS, fire suppression, and cooling systems — all pre-assembled and tested before shipment. Voltage, capacity, and configurations can be customized to your project needs.
Q3: What is the typical delivery time for your systems?
A: Standard models usually take 15–25 working days, while custom-built systems are delivered according to the agreed production plan.
Q4: How long is the warranty?
A: Our systems come with a 5-year standard warranty, extendable upon request. All battery modules use Grade A LiFePO₄ cells to ensure long cycle life and high reliability.
Q5: How do you ensure quality and system safety?
A: Every system undergoes multi-level testing and inspection, from cell selection to final integration. Each cabinet includes BMS + EMS intelligent monitoring, fire protection, and temperature control systems to ensure safe and stable operation.
Q6: What payment and contract terms are available?
A: We support T/T, L/C, PayPal, D/P, D/A, and other flexible payment methods. Contract terms — including delivery time, warranty, and liability — are customized for each project.
