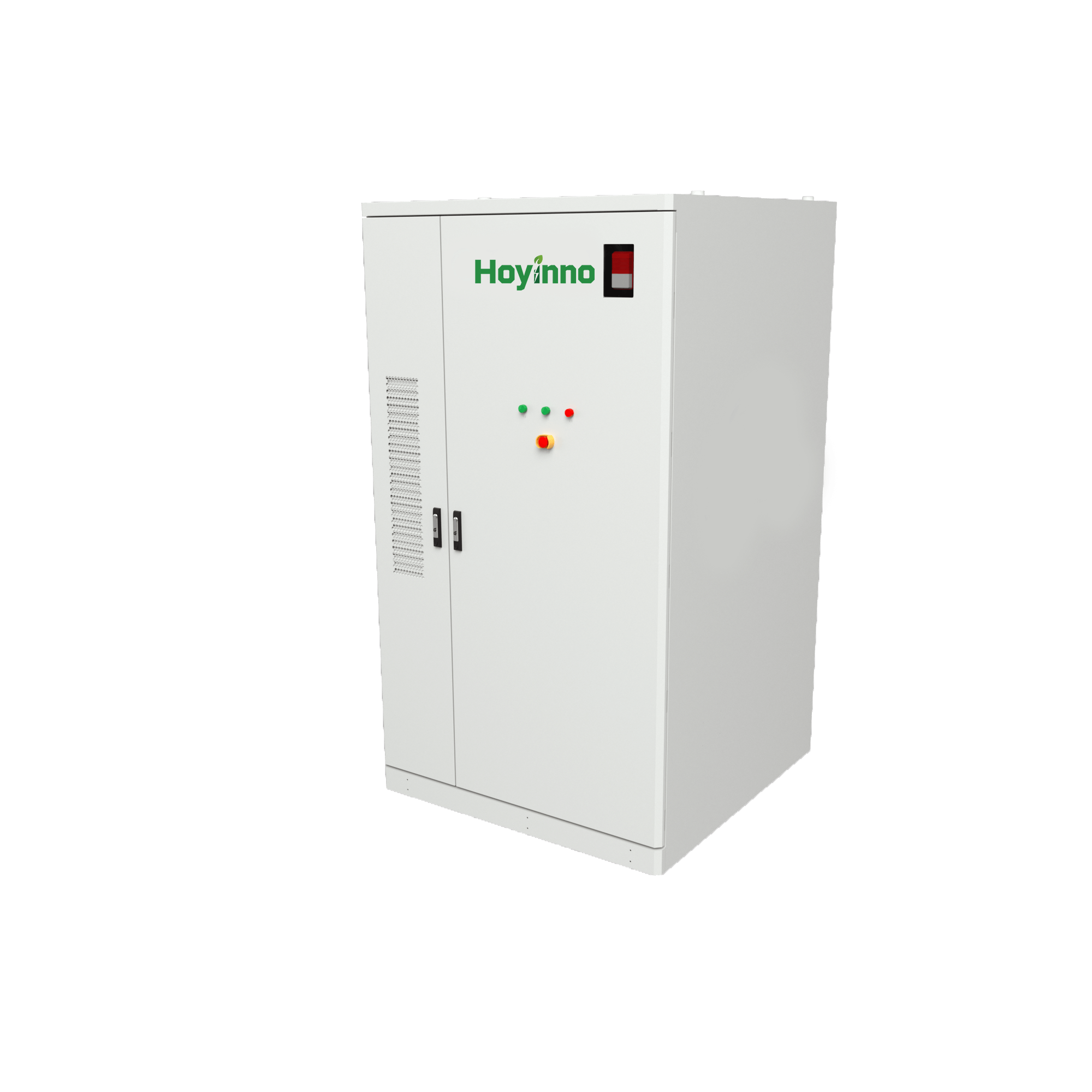

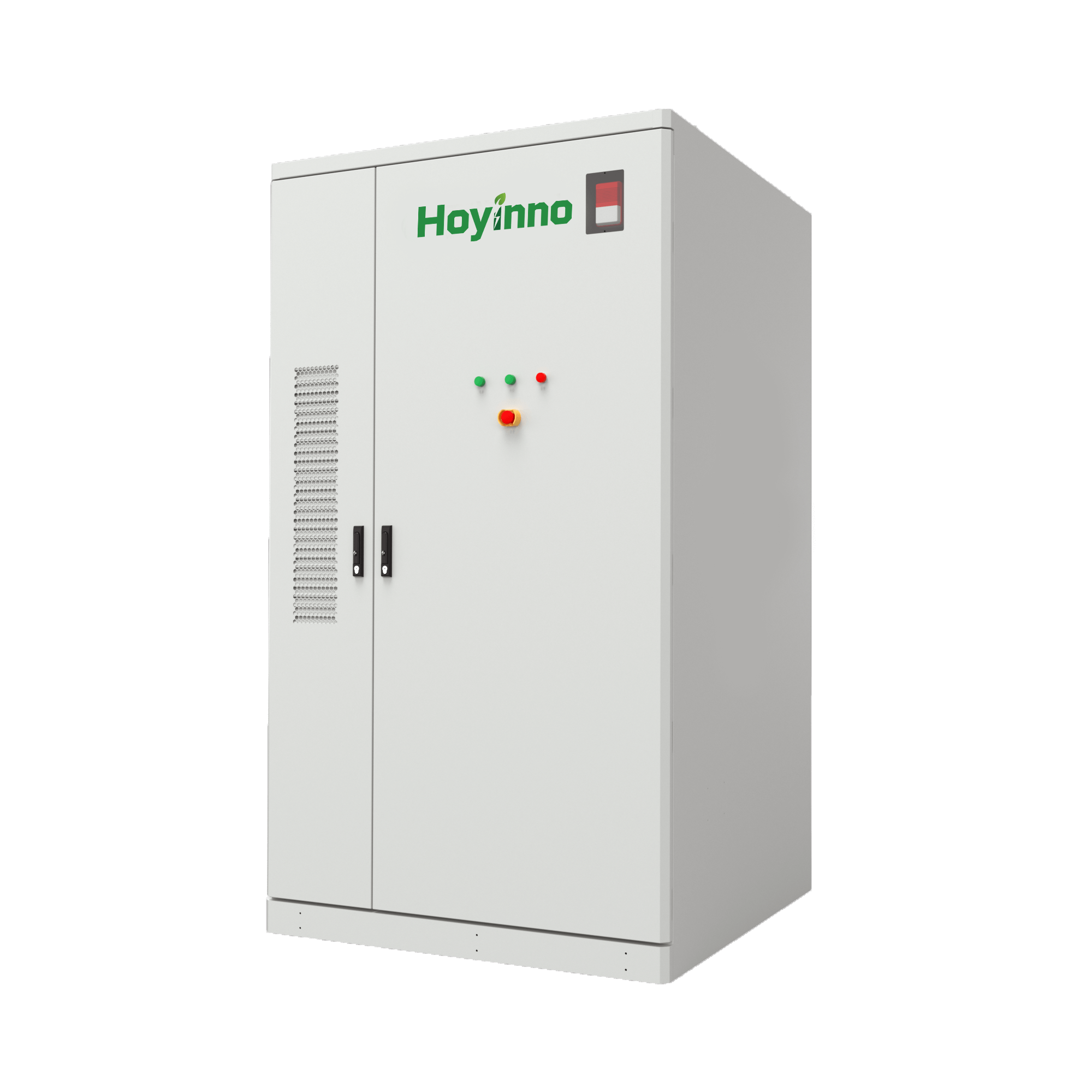

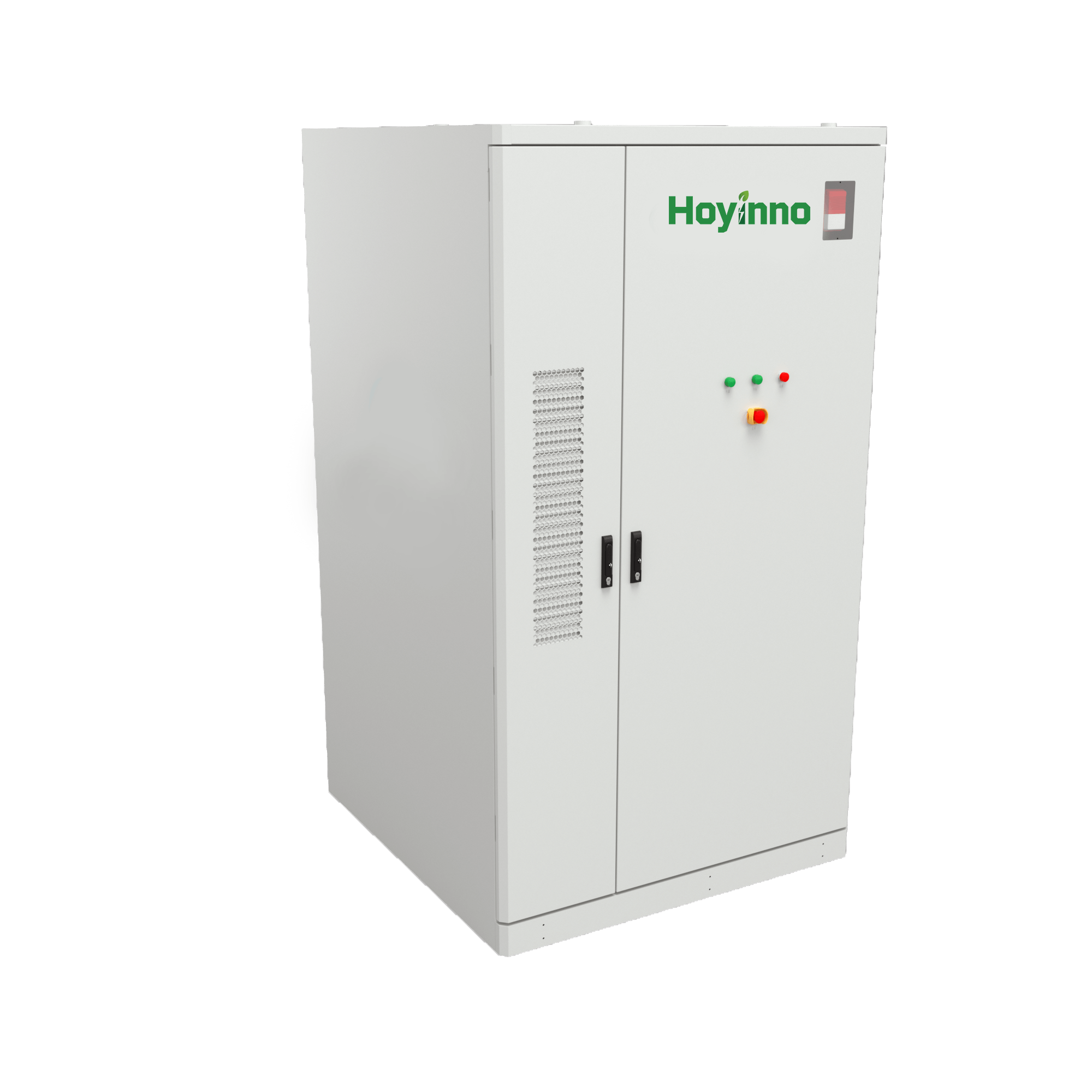

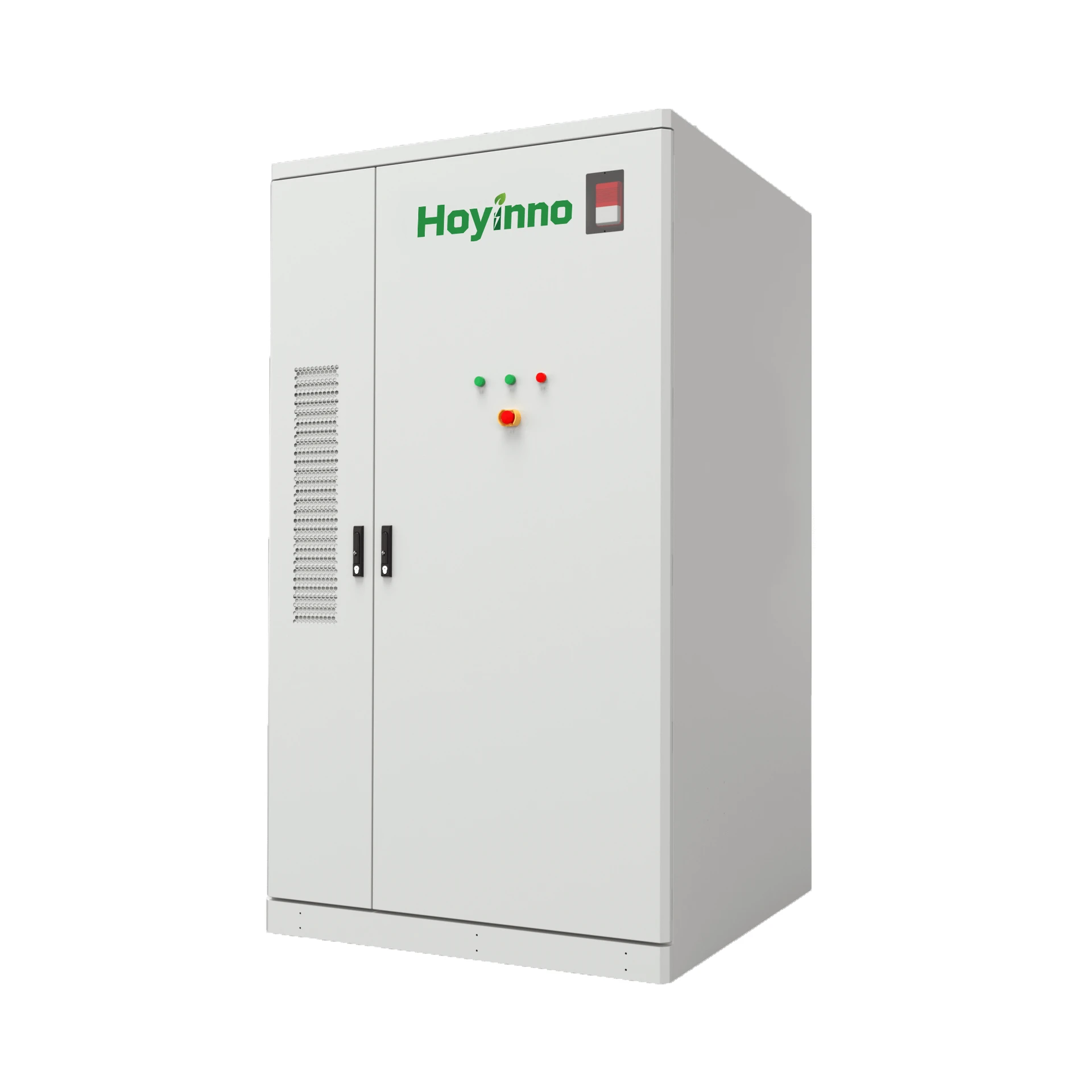

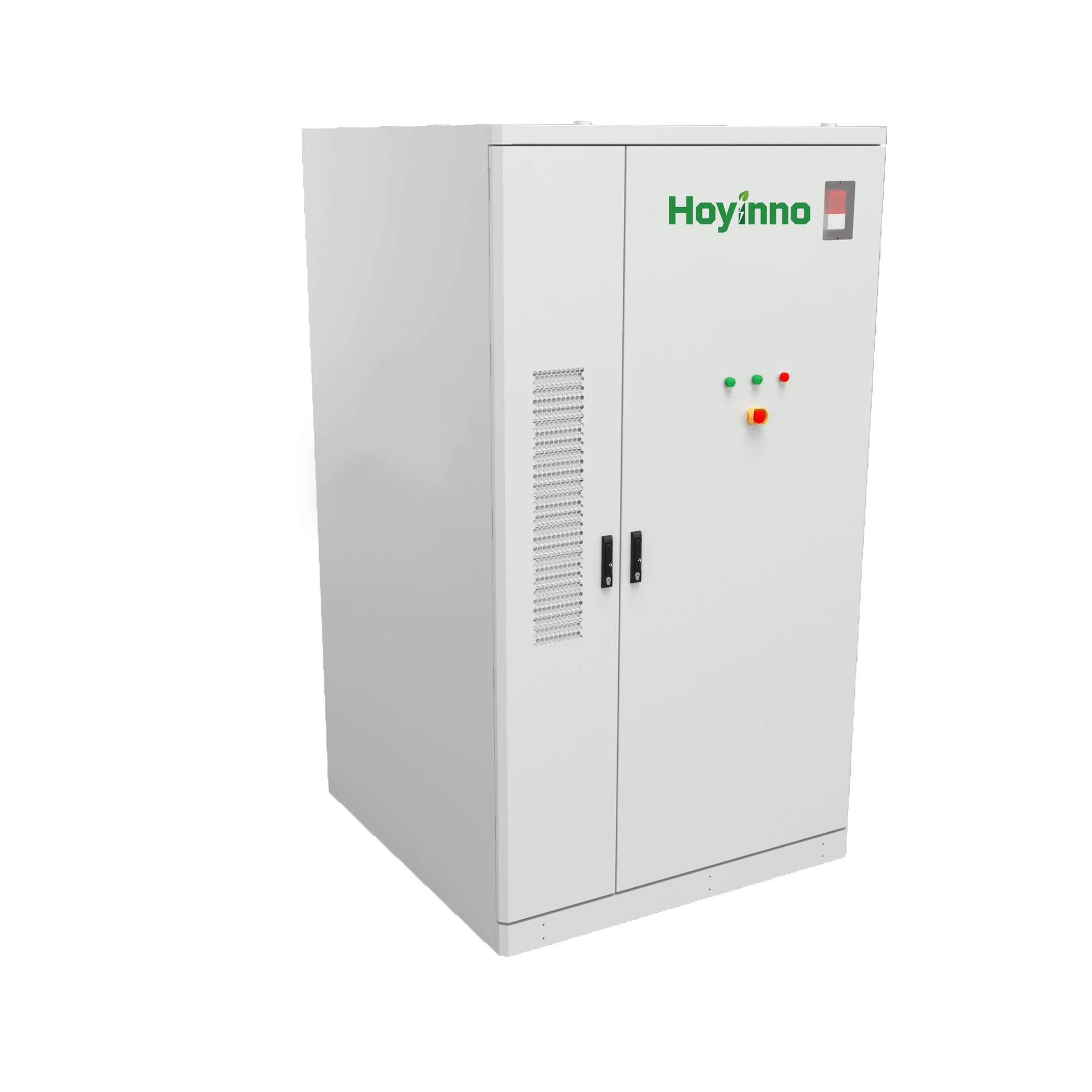

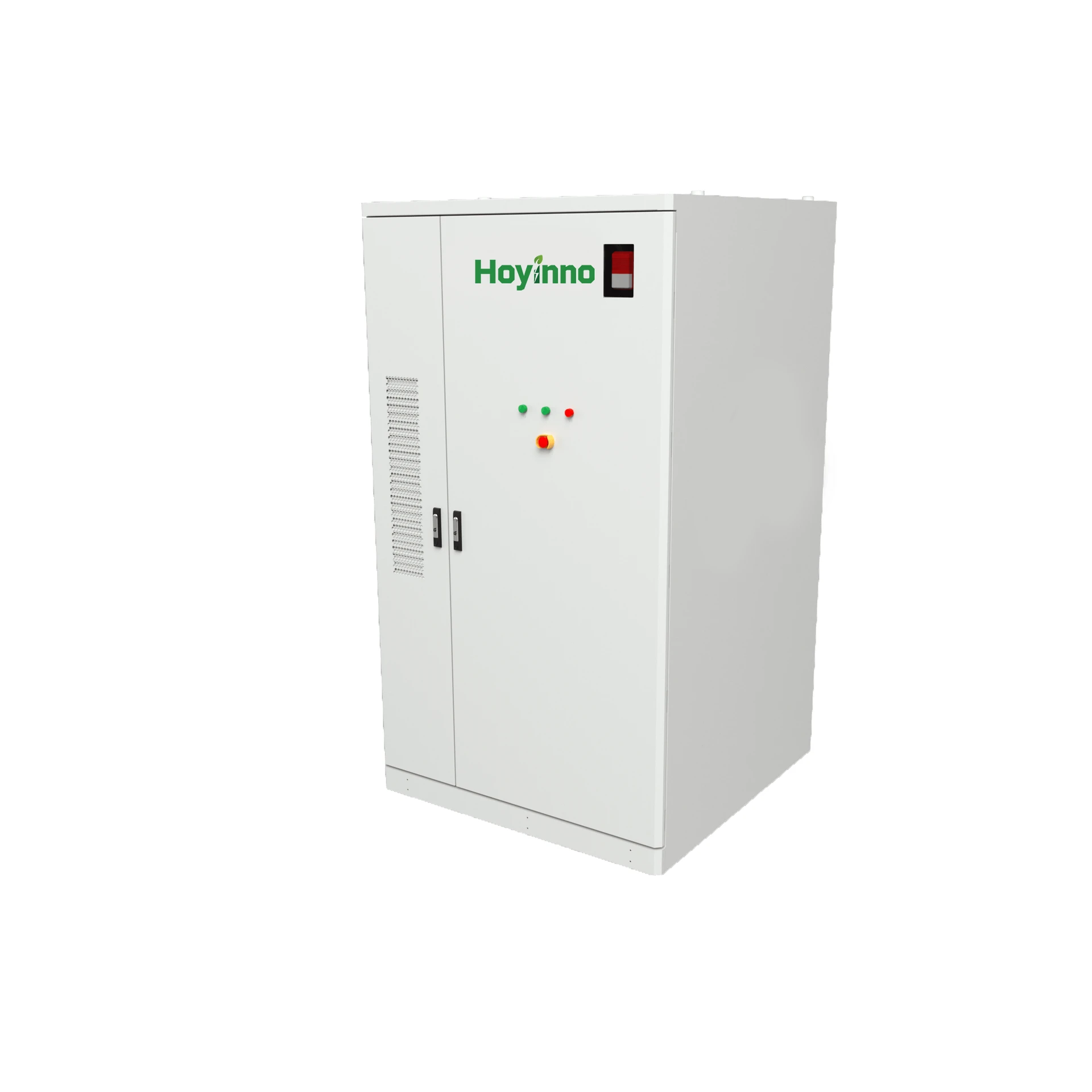

418 kWh Liquid-Cooled Energy Storage Cabinet | Scalable Industrial BESS Solution
Cell Type：
3.2V/314Ah,LFP
Rated Voltage：
1331.2V
Voltage Range：
1040~1518.4V
Rated Power：
210kw
System Capacity：
418kwh
Composition：
1P416S
Rated Frequency：
50Hz
Charge-Discharge Rate：
0.5C
Product Features
1. High-Capacity Configuration -ldeal for industrial zones and EV hubs.
2. Precision Liquid Cooling - Keeps batteries balanced and efficient.
3. Integrated PCs + EMs-Simplifies grid interconnection.
4. Advanced Safety System-Multi-level fire detection and alarms.
5.Remote Monitoring-Cloud-based operation management.
Product Models
| Project | Features | Parameter |
| Battery Parameters |
Cell Type | 3.2V/314Ah,LFP |
| Rated Voltage | 1331.2V | |
| Voltage Range | 1040~1518.4V | |
| Rated Power | 210KW | |
| System Capacity | 418kWh | |
| Composition | 1P416S | |
| Rated Frequency | 50Hz | |
| Charge-Discharge Rate | 0.5C | |
System Parameters |
Ac Side Voltage Rating | 400VAC |
| Ac Side Wiring Mode | 3P+N+PE | |
| Heat Dissipation Method | Intelligent Liquid Cooling | |
| Converter Cooling Method | Forced Air Cooling | |
| Fire Protection Scheme | Composite Detectors(smoke,temperat- ure,flammable gases);Sound and Lightalarms;Package Spraying,Cluster Spraying; |
|
| Perfluorohexanone Extinguishing Agent; Water Frefighting |
||
| ProtectionLevel | IP54 | |
| System Communication Mode | CAN,RS485,ETHERNET,4G | |
| Cycle Life | ≥6000 Times | |
| Product Weight | ≈4.2T | |
| Product Dimensions | 1350x1400x2400mm | |
| Environmental Conditions |
Installation Method | Indoor/Outdoor Installation |
| (tent shelter recommended) | ||
| Ambient Temperature | -20℃~55℃ | |
| Humidity Range | 0~95%(Non-Condensing) | |
| Altitude | 3000M(>3000M Need to be Reduced) |
High-Capacity BESS for Industrial Parks and EV Infrastructure
The 418 kWh cabinet is engineered for heavy-duty energy demands such as industrial zones, EV charging hubs, and mini-grids. Equipped with Grade-A batteries, liquid cooling, and intelligent EMS, it ensures stable long-term performance. Its modular configuration allows expansion into multi-MWh systems for large-scale energy optimization.
Multi-family housing / small community

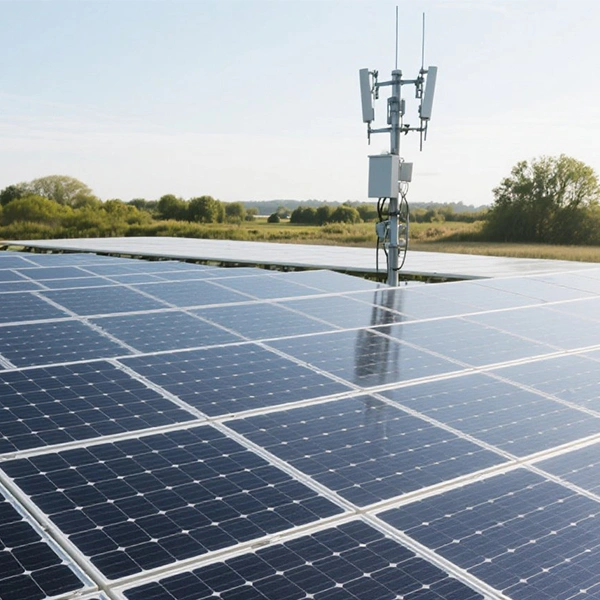

Backup for telecom

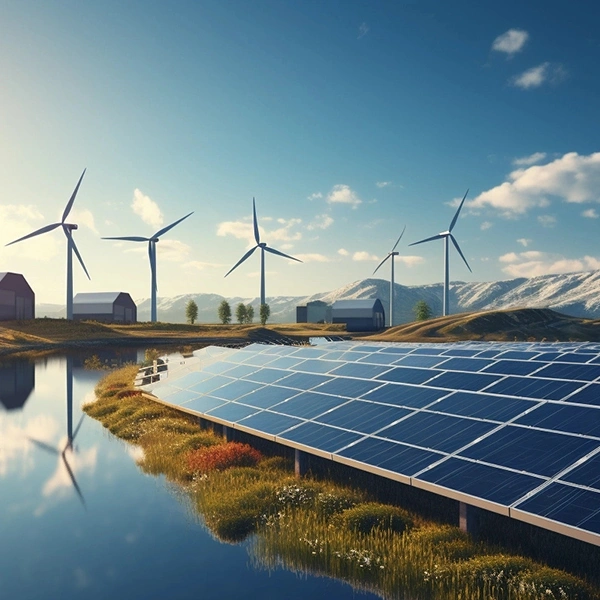

Small wind-solar hybrid systems

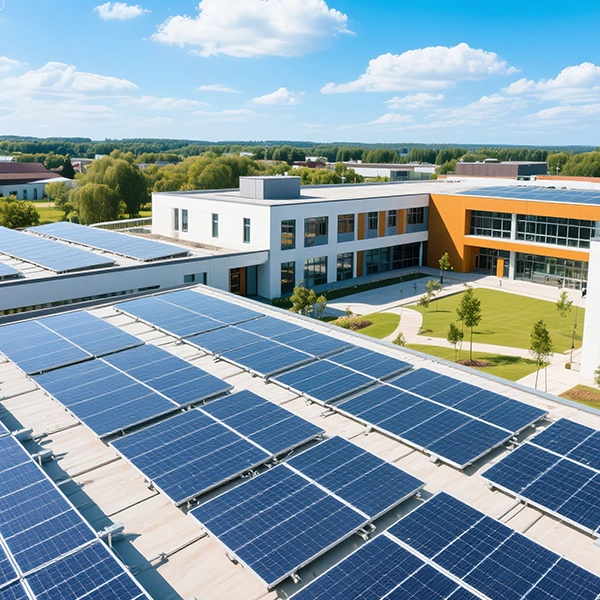

Shops, clinics, classrooms

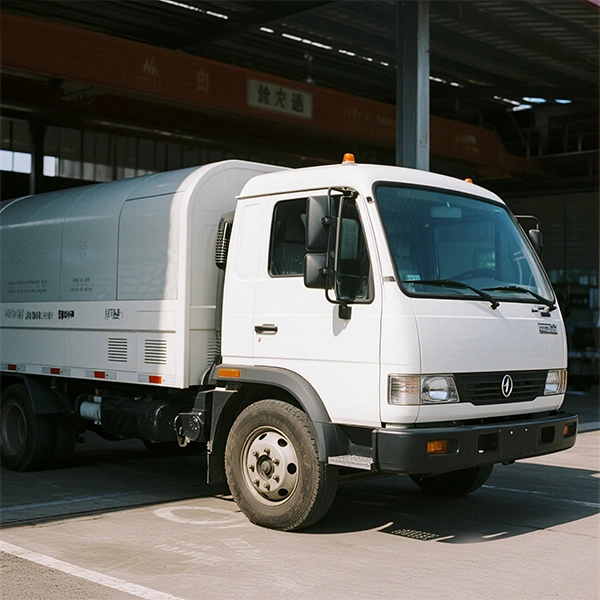

Mobile power vehicles
Factory Real Product Photos
Container Energy Storage
Energy Storage Converter
Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: What kind of company are you?
A: We are a professional energy storage system manufacturer, specializing in customized BESS solutions. Our services cover product R&D, system design, integration, production, and technical support — all from our own factory.
Q2: Can you provide system integration and customized solutions?
A: Yes. We deliver fully integrated systems that include batteries, PCS, EMS, fire suppression, and cooling systems — all pre-assembled and tested before shipment. Voltage, capacity, and configurations can be customized to your project needs.
Q3: What is the typical delivery time for your systems?
A: Standard models usually take 15–25 working days, while custom-built systems are delivered according to the agreed production plan.
Q4: How long is the warranty?
A: Our systems come with a 5-year standard warranty, extendable upon request. All battery modules use Grade A LiFePO₄ cells to ensure long cycle life and high reliability.
Q5: How do you ensure quality and system safety?
A: Every system undergoes multi-level testing and inspection, from cell selection to final integration. Each cabinet includes BMS + EMS intelligent monitoring, fire protection, and temperature control systems to ensure safe and stable operation.
Q6: What payment and contract terms are available?
A: We support T/T, L/C, PayPal, D/P, D/A, and other flexible payment methods. Contract terms — including delivery time, warranty, and liability — are customized for each project.
