Which Limits Define The Usable Output Of A Battery Storage System?

A battery storage system can deliver only the power and energy allowed by its equipment, controls, operating conditions and available state of charge.

A cabinet's nominal energy rating is useful, but it does not describe every service the installation can provide. A system may have energy remaining while a power limit restricts the load it can support. It may also be capable of a short discharge while lacking enough usable energy for a longer event. Understanding these differences makes an early project discussion more precise.

For commercial users considering storage in Southeast Asia, Africa or the Middle East, the first step is to define the required service and its measurement boundary. Peak reduction, solar shifting and backup support ask different questions. Local temperature, grid conditions and maintenance arrangements then shape the assessment. A generic cabinet image cannot establish those project-specific limits.

Power And Energy Answer Different Questions

Power Describes The Rate Of Delivery

Power, commonly expressed in kilowatts, describes how quickly energy can be delivered at a particular boundary. The allowable rate may be constrained by the battery, power conversion equipment, electrical connection or controls. The relevant limit is the one that applies to the complete operating path, not simply the largest number in a collection of component data sheets.

A power limit can also depend on operating conditions. A rating may apply continuously or for a defined short interval, and it may have conditions attached. The project specification should identify the required duration and the point at which the output is measured. Otherwise, two apparently similar figures may describe different equipment boundaries or duty conditions.

Energy Describes The Amount Available Over Time

Energy, commonly expressed in kilowatt-hours, describes an amount rather than an instantaneous rate. Nominal capacity and usable energy should be distinguished. The usable amount depends on the permitted operating window, reserve policy, condition of the equipment and the measurement boundary. Energy available at the battery terminals is not automatically the same as energy delivered to a building load.

The basic power–energy distinction is set out in the NREL grid-scale storage FAQ. It is a useful starting definition, but it does not supply a project design. A simple division of available energy by a constant load gives an idealised duration estimate. Real operation still needs to account for losses, auxiliary demand, changing loads and limits imposed by the equipment or controls.

The Operating Window Sets A Boundary

State Of Charge Is A Control Input

State of charge is an estimate used to describe the battery's charge condition. The system does not generally treat every displayed percentage as freely dispatchable energy. Operating limits and reserve settings determine the part of the range available for the service being considered. The meaning of those settings should be explained in the project documentation.

For example, a facility may reserve some energy for a possible interruption while using another portion for routine load management. The same energy cannot be counted twice in the same time interval. The control strategy should state which service has priority when the available reserve becomes limited. A financial model that assumes unrestricted dispatch while also promising a full backup reserve needs that conflict resolved.

Age And Conditions Change The Available Envelope

Battery condition evolves with use and time. Temperature and other operating conditions can affect the allowable charge or discharge behaviour. The system assessment should therefore identify the conditions attached to a rating and the assumptions used over the intended operating period. A beginning-of-life figure should not be silently treated as a permanent guaranteed output.

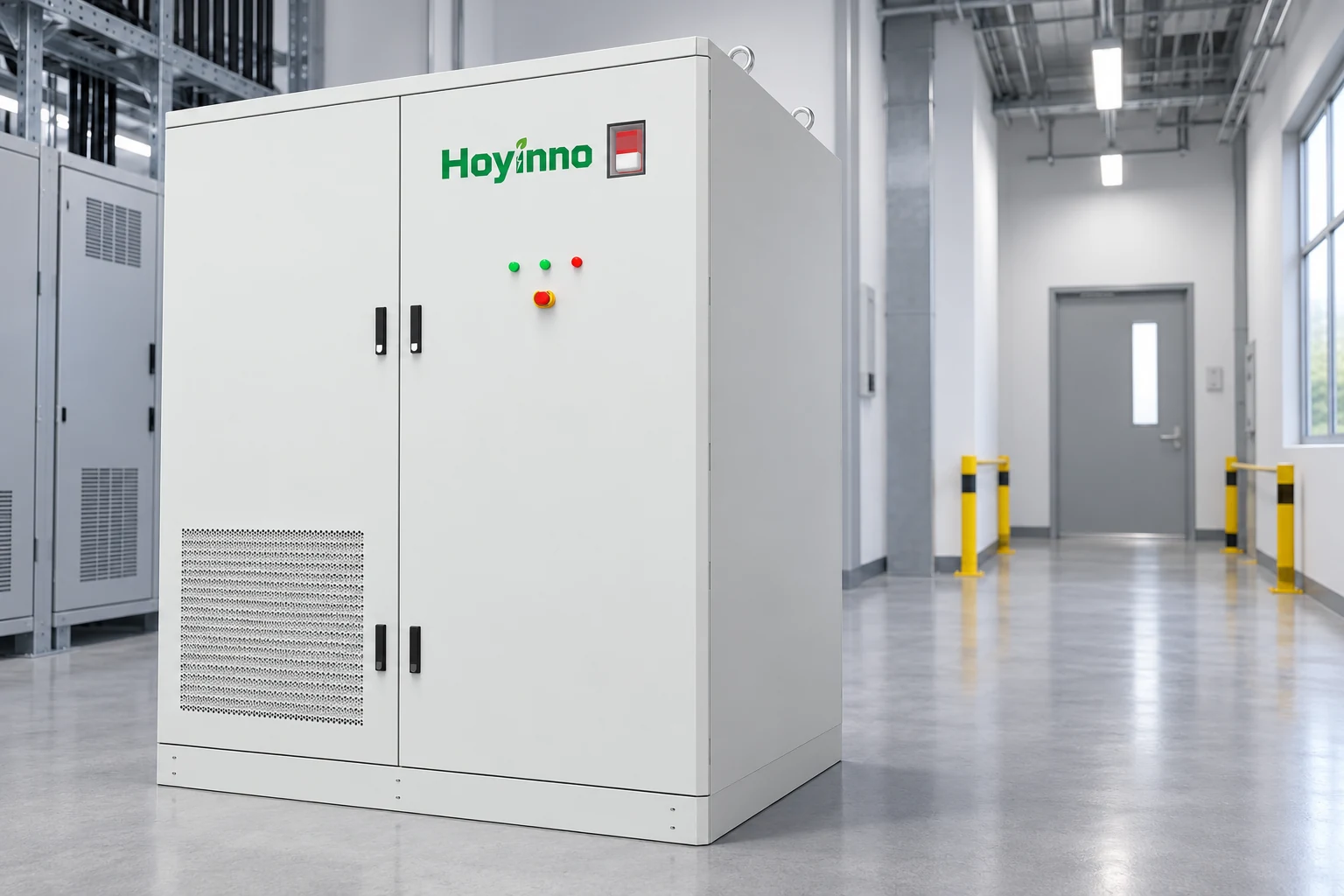

The modular cabinet product page provides a specific equipment context for discussion. Its product designation should not be used as a substitute for a complete project specification. The relevant documents need to state what is included, what is measured and which conditions apply to the proposed configuration.

Losses And Auxiliaries Affect Delivered Energy

Choose The Measurement Boundary First

Energy can be measured at battery terminals, the AC connection or the point serving a particular load. These boundaries include different equipment and losses. A comparison should use the same boundary for the input and output quantities under discussion. Otherwise, an apparent efficiency difference may partly reflect a difference in what was counted.

Conversion equipment, cabling and other parts of the installation can affect the energy delivered. The system may also consume energy for thermal management, controls and standby functions. These demands should be treated according to a stated accounting method. Omitting them from one option while including them in another produces a misleading comparison.

Separate Manufactured Equipment From A Commissioned System

Manufacturing checks establish evidence about equipment within their defined scope. Site commissioning examines how the installed components, protection and controls work together under the agreed procedure. Neither a production photograph nor a successful component test proves that a complete installation is ready for every intended service.

The engineering service scope can help structure questions about interfaces and acceptance responsibilities. A project should identify who provides the settings, who checks the relevant connections and who records the acceptance result. The evidence should remain tied to the installed configuration so that later changes can be assessed against the same baseline.

Recharge Opportunity Matters As Much As Discharge Duration

Follow The Energy Across The Whole Schedule

A discharge event does not stand alone. The system needs an opportunity to recharge before the next required event, subject to the available source and charging limits. A daily schedule should show when energy becomes available, when the load requires support and what reserve must remain. A storage system cannot recover energy that the source never supplies.

Solar shifting illustrates this clearly. A sunny-period surplus may be stored for later use, but the amount depends on the actual surplus after other demands and limits are considered. A cloudy period may reduce the next recharge opportunity. Evaluating only the evening load can therefore overstate the service available over several consecutive days.

Define Backup As A Load And An Event

Backup needs a defined critical load, expected event duration and transfer arrangement. Supporting an entire facility is different from supporting selected circuits. A short high-power demand may also require separate assessment from the average load. The design should identify which demands must continue and which can be reduced or interrupted.

For remote and off-grid applications, the relationship between storage, generation and load is especially important. The assessment should consider a sequence of operating conditions rather than a single ideal day. It should also state the response when the available energy is insufficient, instead of treating storage capacity as a guarantee of unlimited continuity.

Controls Turn Ratings Into Operating Decisions

An energy management strategy for a battery storage system decides when to charge, discharge or preserve reserve within the permitted limits. It should not override equipment protection. The energy management system overview is a useful place to distinguish scheduling functions from the underlying protective functions. The project documentation should describe the actual control authority and the response to unavailable data or communications.

Several constraints can become active at once. The battery may be within its permitted charge range while a connection limit restricts export. A load may require support while a reserve policy prevents further discharge. Understanding the priority order explains why measured output can differ from a headline rating without immediately proving a fault.

A useful operating record includes the requested output, actual output and the constraint active at the time. Without that context, a low-output period can be difficult to interpret. It may reflect a deliberate reserve decision, insufficient available energy, a temperature-related restriction or an equipment issue. These possibilities require different responses.

The operation and maintenance scope should explain who can review those records and which actions require engineering approval. Routine observation, remote diagnosis and changes to protective settings are different activities. A clear boundary helps ensure that a performance question is investigated without an informal attempt to bypass the condition that limited output.

FAQ

Does More Nominal Capacity Always Mean Longer Backup?

Not by itself. The relevant comparison uses the usable energy available for the defined load, reserve policy and measurement boundary. Power restrictions, auxiliary demand and the state of charge at the start of the event can also affect the service delivered.

Why Can A System Have Charge Remaining But Deliver Less Power?

Energy remaining and allowable output rate are different quantities. A power limit, temperature condition, connection restriction or control priority may constrain delivery. The operating record should identify the active limit before the situation is classified as a fault.

Can The Same Stored Energy Support Peak Reduction And Backup?

It can contribute to different services under an agreed schedule, but the same energy cannot be spent twice at the same time. The control policy must allocate reserve and define priorities. The assessment should test what happens when a routine dispatch is followed by an interruption.

Is Round-Trip Efficiency Enough To Compare Two Systems?

No. The stated boundary, test conditions and included auxiliary loads need to match. The comparison also needs the required power, usable energy, operating schedule and service conditions. One efficiency figure cannot describe every practical difference.

What Information Is Needed For An Initial Assessment?

The starting package should describe the load profile, required service, connection conditions, charging sources and reserve expectations. Site conditions and responsibility for controls also matter. These inputs allow the discussion to move from a cabinet rating to a defined operating requirement.

Read The Rating As Part Of An Operating Definition

A battery storage system is best understood as equipment working within a set of conditions. Power describes the rate of delivery; usable energy describes the available amount; the operating window, auxiliaries and schedule determine how those quantities can serve the load. A complete assessment keeps these definitions connected.

The most useful conclusion is therefore a stated service boundary: the required load, duration, starting condition, recharge opportunity and control priority. Once these are clear, equipment information and operating evidence can be compared on the same basis.
