Electrical Storage Solutions Need A Defined Delivered-Energy Boundary

Electrical storage solutions should be compared by the energy delivered at an agreed connection point under a defined operating cycle.

A cabinet's energy rating is a useful starting point, but it does not say how much electricity reaches a load after conversion, operating reserves, and supporting equipment are considered. Two offers can quote the same kilowatt-hours while describing different boundaries. A sound comparison first defines where energy is measured, what equipment lies inside that boundary, and what operating conditions apply.

Give every energy figure a location and a condition

Separate nameplate capacity from a usable operating window

Nameplate energy describes a rated quantity under stated conditions. The operating controller may retain upper and lower state-of-charge margins, reserve capacity for another service, or restrict operation because of temperature or battery condition. Usable energy therefore needs its own definition. A percentage without the associated state limits and test conditions cannot establish the amount available for the proposed duty.

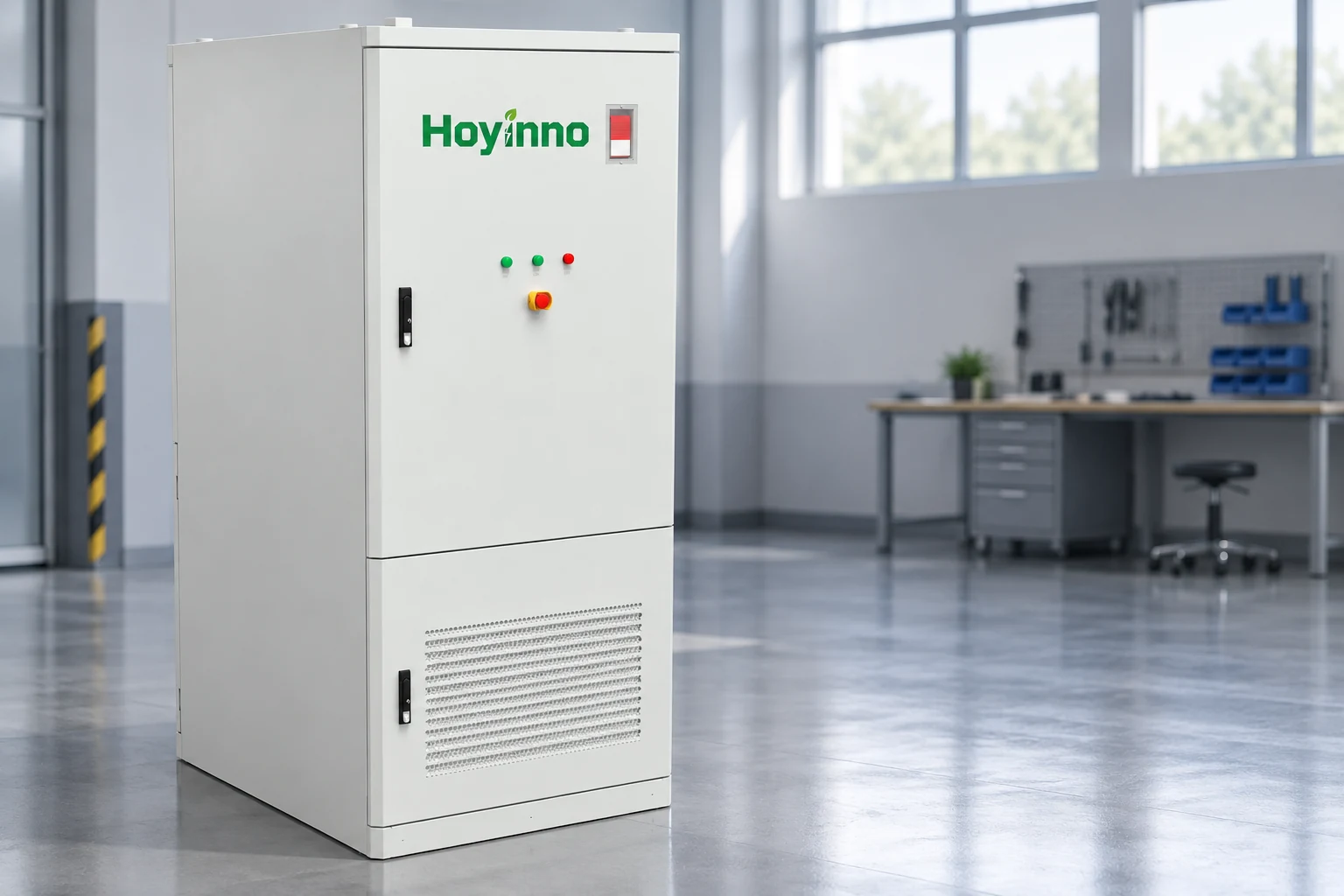

Hoyinno's 233 kWh liquid-cooled system page lists 233 kWh and 105 kW as catalogue values. These are starting points for a technical discussion, not a guaranteed duration at a site's load. Dividing one number by the other does not account for the usable state window, conversion losses, auxiliary loads, reserve settings, or any derating applicable to the installation.

Distinguish the battery terminals from the site meter

Energy at a battery's DC terminals is different from energy at the AC output of its converter. Another difference may exist between that converter and a site connection point when cables, transformers, or separately supplied equipment are included. A one-line drawing should identify the proposed measurement location. Give the measurement a clear name so that the same term is used in the offer, test plan, and acceptance record.

Account for supporting loads without subtracting them twice

Identify how each auxiliary load receives power

Cooling equipment, controls, pumps, heaters, and communications may consume electricity during operation or while the battery is idle. Auxiliary consumption should be described by operating mode and supply path. Some loads may draw from the battery system, others from a separate site supply. Their location relative to the measurement boundary determines whether the reported energy already includes their effect.

If a net AC measurement already captures a supporting load, subtracting that load again understates the result. If the load is supplied outside the boundary, ignoring it can overstate the site's energy benefit.

Use one consistent basis for an illustrative comparison

Consider a purely illustrative operating cycle with 100 kWh charged and 90 kWh returned through the same AC meter. The ratio is 90 percent at that boundary. If a separate cooling supply consumes 3 kWh outside it during the agreed cycle, a whole-site account must include that extra input. It would use 90 divided by 103, approximately 87.4 percent, rather than silently describing both figures as the same efficiency.

These numbers are an accounting example, not Hoyinno specifications or expected project performance. If cooling were already behind the original meter, adding the 3 kWh again would be incorrect. The useful lesson is to identify the actual electrical path before applying any calculation. The engineering service scope is a relevant place to clarify responsibility for that boundary drawing and its supporting assumptions.

Match the comparison to the intended operating cycle

Include the waiting period when it matters

A system that charges and immediately discharges follows a different pattern from one that waits many hours before serving a load. Supporting equipment may continue operating during that interval. A short test can help characterize a component, but it may omit energy costs that matter to the intended service. State explicitly whether idle periods, preconditioning, and recovery after discharge belong to the comparison cycle.

Electrical storage solutions serving a predictable daily load can be compared with a representative daily profile. A standby application may instead require a longer observation period and a clear reserve policy. The appropriate profile comes from the operating requirement; it should not be selected merely because it produces the highest efficiency value in a brochure.

Keep the charging path and site conditions visible

Energy charged from an AC source can pass through a different conversion route from energy charged through a DC-coupled arrangement. Results measured along different routes should not be ranked without adjustment. Similarly, ambient conditions, cooling settings, charge rate, and discharge rate can affect the result. Record the assumptions rather than importing an efficiency figure from an unrelated system configuration.

The site's commercial and industrial application overview provides context for discussing load patterns. An application image, however, does not establish how solar generation, storage, and local demand are connected. The project drawing and meter allocation must distinguish direct generation supplied to the load from electricity discharged by the battery.

Specify data that can reproduce the comparison

Keep charge and discharge records separate

A net energy total can conceal repeated charging and discharging within the reporting period. Retain separate import and export readings, or equivalent directional records, at a suitable interval. Record timestamps consistently and identify missing or substituted data. The interval should be short enough to resolve the operating pattern being assessed rather than averaging away the behavior that explains the result.

State of charge at the start and end also matters. A test that begins with more stored energy than it finishes can appear to deliver more than the charged input alone would suggest. An agreed protocol should bring the system to comparable states or explain a justified correction. A dashboard screenshot without the underlying records makes that distinction difficult to audit.

Assign ownership of the measurement chain

Specify the meter location, direction convention, accuracy basis, calibration or verification evidence, time reference, and export format. Identify who checks the data and who decides whether a gap invalidates the comparison. Metering, controller logs, and battery-management estimates describe related but different observations; they should not be treated as interchangeable merely because all appear on one screen.

The energy management system overview is relevant to questions about monitoring and control integration. Confirm the actual data points and export access supplied with the proposed system. A visible trend graph does not itself prove that an independent reviewer can reproduce the charge total, discharge total, and auxiliary consumption used in an acceptance calculation.

Turn an attractive rating into a comparable selection record

Compare offers using a boundary sheet with one row per proposed configuration. Record the power and energy basis, included equipment, operating state limits, charge path, representative profile, environmental assumptions, and supporting loads. Require each unresolved item to remain visibly open. A blank field should not silently inherit an assumption from another supplier's proposal.

The analysis service description can frame the information needed for a project assessment. Useful inputs include time-series demand, generation where applicable, the intended service window, reserve requirements, and constraints at the connection point. A single monthly consumption total is usually insufficient to reveal the duration and timing of the energy shortfall that storage is intended to address.

Distinguish factory evidence from site acceptance. Factory records may help establish component behavior under documented conditions. They do not automatically include the site's transformer, cable route, external supporting supply, dispatch settings, or local environment. Commissioning should confirm the delivered arrangement and the measurement chain before its results are compared with the agreed boundary sheet.

For electrical storage solutions, the selection record should finally identify who resolves a disputed result. Preserve raw measurements, configuration versions, event logs, and any agreed exclusions. The operation and maintenance service scope is relevant to continuing data access and investigation responsibilities after commissioning, but those responsibilities still need to be stated in the project agreement.

Frequently Asked Questions

Does a 233 kWh rating mean 233 kWh reaches the load?

Not necessarily. The rating must be interpreted with its boundary and conditions. The usable state window, conversion path, supporting loads, and operating limits can affect the delivered quantity. Confirm the net output definition and applicable test basis rather than treating catalogue capacity as a site-level energy commitment.

Is the highest round trip efficiency always the best choice?

No. First confirm that competing values use the same boundaries and operating cycle. Then consider whether the system can meet the required power, duration, reserve policy, and site constraints. An efficient configuration that does not satisfy the intended service is not made suitable by the percentage alone.

Should cooling power always be deducted from discharge energy?

No. Its treatment depends on the supply route and measurement point. If the discharge figure already includes cooling behind the meter, a second deduction counts the same effect twice. A separate external cooling supply must be reconciled explicitly in the whole-system account using a consistent energy basis.

Can a period with zero power flow establish availability?

Zero flow can mean no dispatch was requested, an operating limit was active, or the system was unavailable. Meter data alone may not distinguish these cases. Availability assessment requires dispatch requests, status information, and event records, with an agreed definition of what counts as available service.

What is the most useful deliverable before a final comparison?

A configuration-specific boundary sheet paired with a reproducible measurement plan is more useful than an isolated headline value. It should identify all relevant input and output paths, the operating cycle, data responsibilities, and unresolved assumptions. The comparison becomes meaningful when every reported quantity can be traced to the same agreed accounting basis.

The decisive selection criterion is a demonstrated match between the required service and a clearly defined delivered-energy result. Capacity, efficiency, and supporting-load figures become useful together when their boundaries, operating conditions, and evidence are explicit.
