What Must Off Grid Electricity Storage Balance Before The Grid Is Gone?

Off grid electricity storage must do more than hold enough kilowatt-hours for an average day. Before a site disconnects from a utility—or operates where no utility is available—the project must balance a defined load boundary, variable generation, converter capability, reserve, recharge, protection, and degraded operating states. If any one layer is omitted, a large battery can still fail to deliver the service the project expects.

This balance-first framework is intended for EPC teams, procurement leaders, energy managers, engineers, and investors planning projects in Southeast Asia, Africa, and the Middle East. It complements the site's earlier timescale explanation by asking a different question: what must reconcile across the whole electrical path before islanded operation is accepted?

Draw The Electrical Boundary Before Sizing Storage

An off-grid design begins with a boundary, not a battery. The boundary identifies which buses, loads, generators, renewable sources, converters, protection devices, and auxiliary systems must continue together. The U.S. Department of Energy describes a microgrid as an interconnected group of loads and distributed energy resources within clearly defined electrical boundaries that can act as a single controllable entity. That definition turns “the site” into something engineers can model and test.

Separate Critical Service From Connected Load

The critical load profile should show real operating sequences: base demand, motor starts, shift changes, cooling, communications, water systems, safety functions, and loads that can be delayed or shed. A connected-load total is usually too conservative for energy and too vague for control. Each load needs consequence, duration, start behavior, priority, and permissible interruption.

Include The Loads That Keep Storage Alive

Cooling, controls, pumps, fire systems, communications, heaters, and standby consumption may be small compared with the process load, yet they affect usable energy and safe operation. The balance should include them in normal, night, fault, maintenance, and recovery states instead of hiding them in a blanket loss factor.

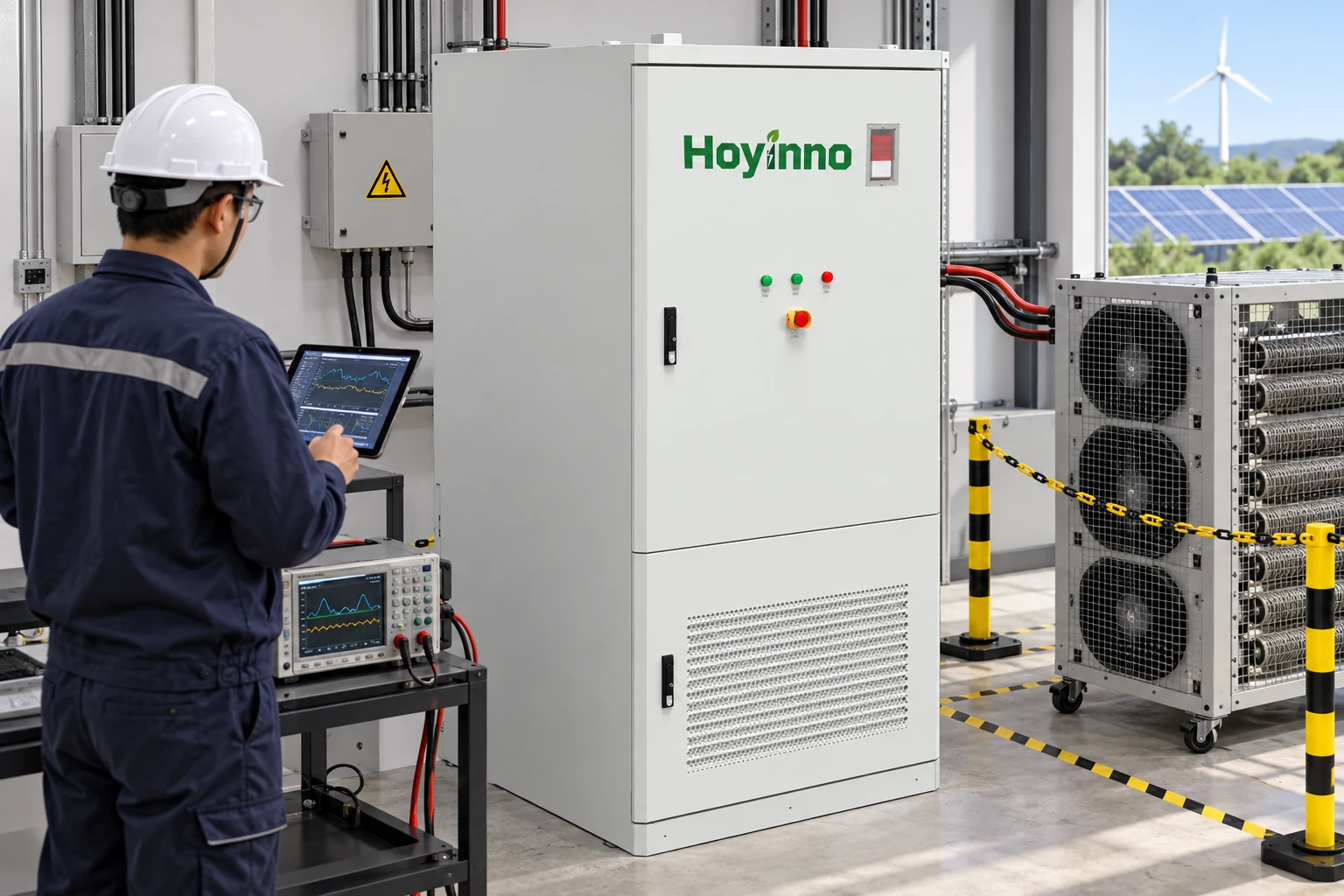

Hoyinno storage cabinet inside an off-grid electrical system boundary — A storage cabinet belongs inside a defined electrical boundary that includes generation, conversion, protection, auxiliary loads, and the priority load bus.

Reconcile Energy Supply With Demand Chronologically

An annual or daily generation total can hide the hours when supply and demand do not coincide. A chronological energy balance tracks renewable output, generator availability, load, conversion losses, auxiliary consumption, battery charge and discharge, reserve, and curtailed energy across representative and difficult sequences.

Model More Than One Typical Day

Projects should test seasonal resource cases, low-resource runs, high-temperature periods, production peaks, planned maintenance, and credible equipment outages. The result should show served and unserved load, battery state, curtailed generation, fuel use where applicable, and the path back to normal reserve. Assumptions should be labeled as measurements, forecasts, contractual guarantees, or operating rules.

Make The Recharge Window Visible

A recharge window may be more restrictive than the discharge event. After a difficult night, generation must serve the live load and restore reserve before the next risk period. Charger limits, battery temperature, generator loading rules, solar ramps, and competing loads can delay recovery. The model should prove the recovery sequence, not merely assume the battery returns to full.

Balance Power Through Every Converter

Energy capacity answers how long a load may be served; power capability answers whether the system can start and stabilize it. The battery, DC path, inverter, transformer, switchgear, cables, and protection must support the same event. The power conversion and control layer therefore belongs in the sizing model from the beginning.

Use Power-Duration Envelopes

A single power number cannot describe continuous output, short overload, charging acceptance, reactive power, temperature derating, state-of-charge limits, or repeated events. Require an envelope that states duration and initial conditions, then compare it with measured or modeled load steps. Converter headroom must remain available for voltage and frequency control where required.

Coordinate Grid-Forming And Protection Decisions

In islanded operation, someone must establish voltage and frequency. Controls need a hierarchy for battery, generator, renewable inverters, and load shedding. Protection studies must consider the fault current and control behavior of inverter-based resources. Transition logic should state what trips, what remains energized, and how the system resynchronizes or restarts.

Engineer commissioning a Hoyinno cabinet with converter and protection controls — Commissioning should test the cabinet, converter controls, protection, measurements, and representative load behavior on a synchronized time base.

Reserve Is A Policy, Not Unused Capacity

The purpose of reserve should be explicit: bridge a generator start, protect a safety load, survive forecast error, cover a renewable ramp, or preserve black-start energy. A reserve value without its protected event is difficult to defend and easy to override.

Assign Reserve To Named Events

For each event, define the starting battery condition, load set, expected generation, maximum duration, recovery target, and escalation if the event lasts longer. The policy can then tell operators when to shed discretionary load, start backup generation, defer charging, or enter a protected state.

Prevent Control Objectives From Competing

A controller may be asked to maximize renewable use, reduce fuel, limit peaks, maintain reserve, stabilize frequency, and protect battery life. Those objectives can conflict. The same-site EMS overview provides supervisory context, but every project needs a priority order, permissions, fallback behavior, and change-control record.

Balance Layer	Key Input	Failure Hidden By A Simple Capacity Figure	Acceptance Evidence
Load boundary	Priority and operating sequence	Essential auxiliaries omitted	Approved one-line and load matrix
Energy	Chronological demand and generation	Shortfall during low-resource hours	Time-series model and sensitivity cases
Power	Steps, starts, reactive demand	Converter reaches current limit	Power-duration curve and tests
Reserve	Protected event and recovery target	Stored energy consumed too early	Control logic and event trend
Degraded state	Unavailable device or signal	Single failure removes all service	Fault injection and fallback test

Design Degraded States Before Commissioning

Real projects operate with failed sensors, lost communications, a converter unavailable, a generator delayed, a cooling alarm, or a maintenance bypass active. The design should name safe degraded states and the minimum service each state preserves. “Automatic” is not a complete response unless triggers, timeout, fallback, operator authority, and recovery are documented.

Test One Failure At A Time

Fault injection can verify how the system responds to stale data, communication loss, unavailable generation, sensor disagreement, breaker failure, or thermal derating. Tests should protect people and equipment, use approved procedures, capture synchronized trends, and define pass criteria in advance.

Keep manual operation practical.

Remote projects need local indication, clear state names, controlled manual actions, and recovery instructions that fit operator training. The remote-area solution page illustrates the application context. Project requirements still need to address access, spares, communications outages, fuel logistics, language, and service response.

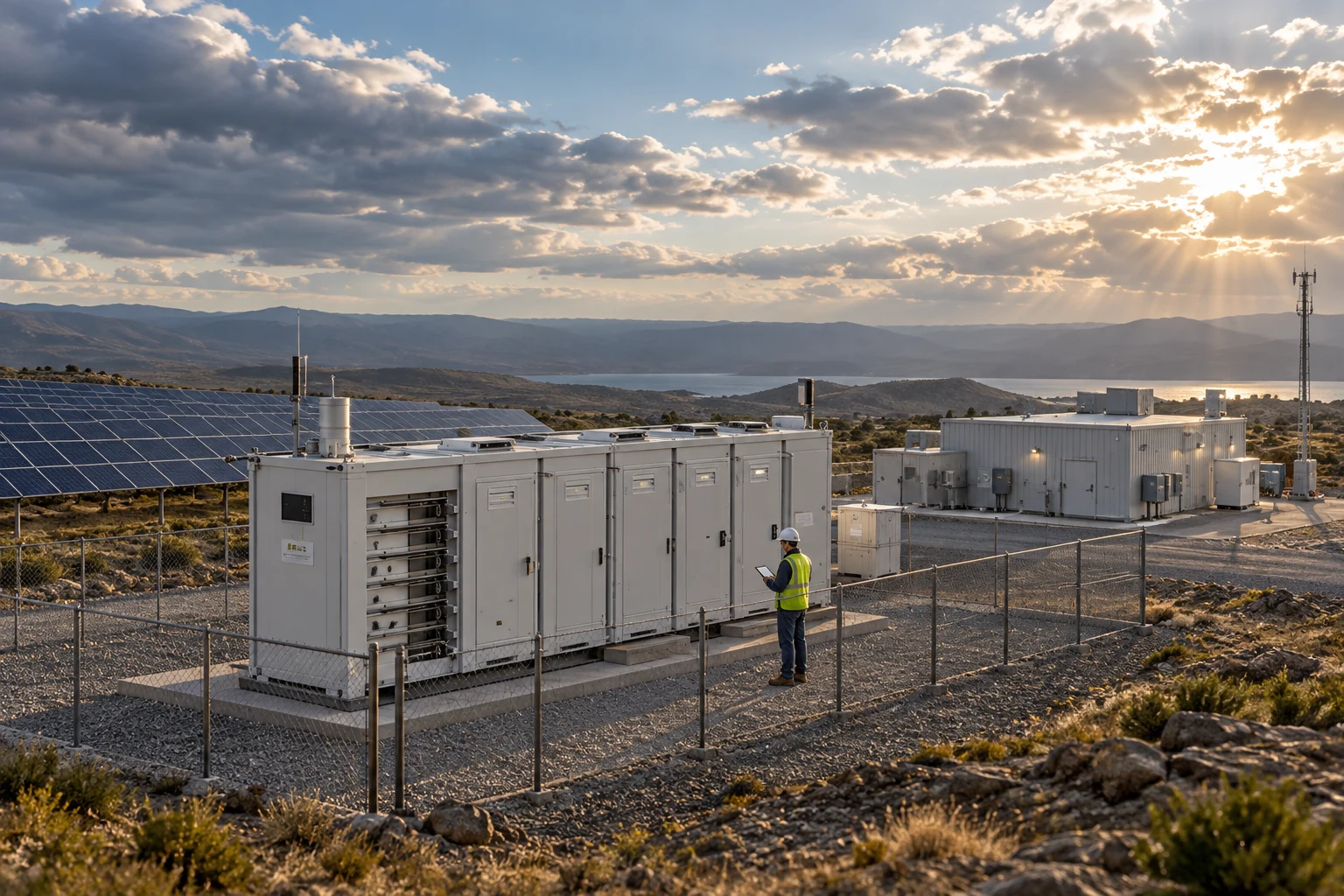

Remote solar battery installation during degraded-state review — Remote operation needs visible equipment state, safe local controls, communications fallback, and a rehearsed path from degraded service back to normal reserve.

Turn The Balance Model Into Procurement Evidence

A proposal for off grid electricity storage should connect equipment choices to the project's boundary and cases. A same-site cabinet page or modular storage category can provide product context, but it cannot by itself prove fit for a specific load, climate, protection scheme, or recovery objective.

Freeze Interfaces Before Factory Testing

Approve the one-line diagram, equipment ratings, communication map, signal list, control ownership, software versions, protection settings, and test cases before factory acceptance. If site devices are unavailable, simulations should be documented and the untested interfaces carried into site acceptance.

Make tests reproduce the model.

Acceptance should replay representative load steps, renewable changes, reserve limits, source transitions, communication loss, alarms, shutdown, black start where applicable, and recovery. Measured results should use the same names and boundaries as the model. Differences need an owner, technical assessment, correction, and repeated affected step.

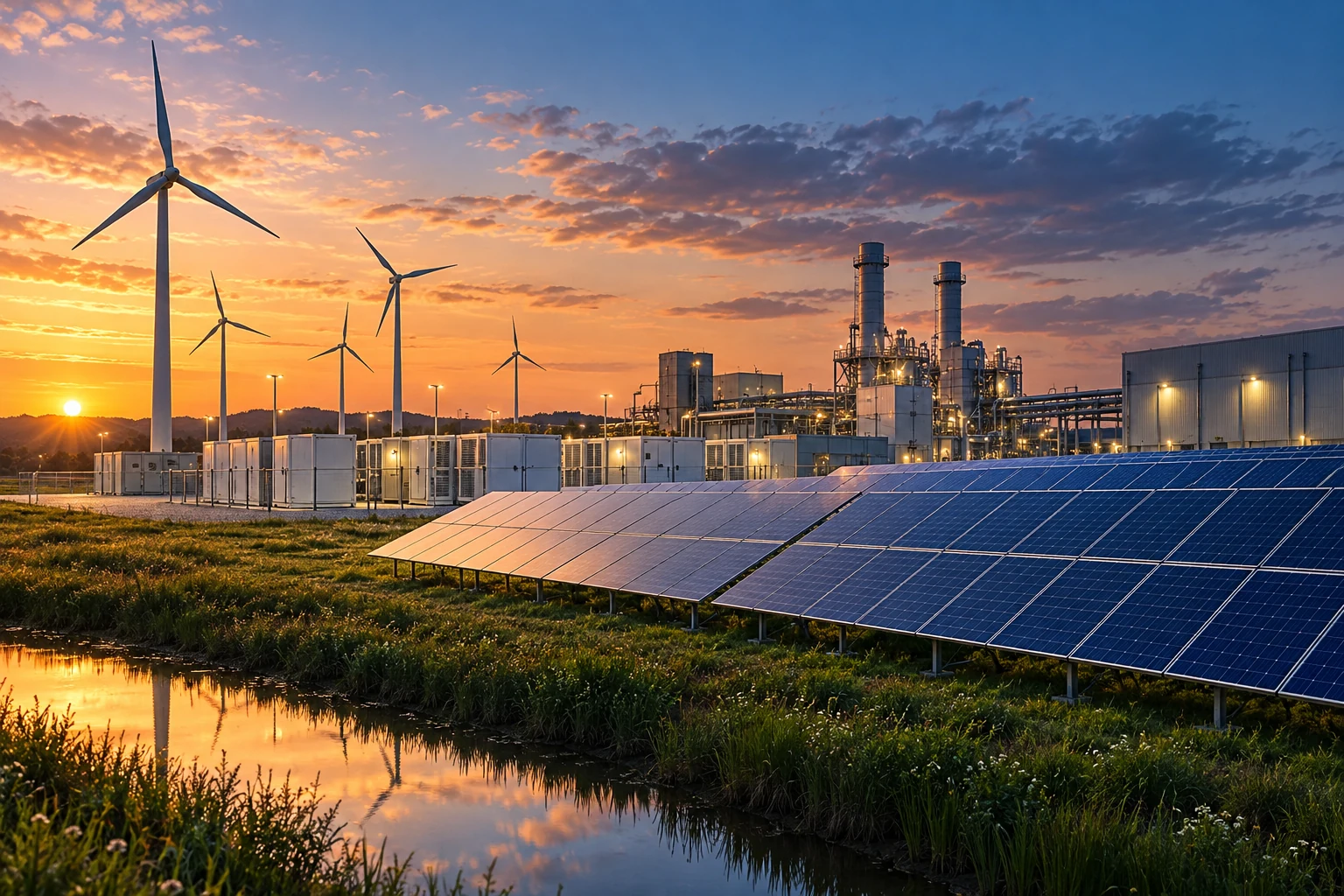

Hybrid renewable plant balancing generation storage and priority loads — Integrated acceptance connects renewable supply, storage, controls, priority loads, service access, and recovery instead of approving isolated components.

The engineering service page and operations and maintenance page are relevant references for project support. Procurement should still define deliverables, exclusions, witnesses, data ownership, training, spare strategy, and post-handover responsibilities.

Frequently Asked Questions

Is The Largest Load Always The Critical Load?

No. Criticality depends on consequence and required service, not size alone. A small communications, control, cooling, water, or safety load may be essential, while a large process load may be delayed or shed under an approved rule.

Why Can A Battery With Enough Energy Still Trip?

The converter, battery current limit, temperature, state of charge, reactive demand, protection, cable, transformer, or control transition may constrain instantaneous power. Energy and power require separate evidence and a common event definition.

How Much Reserve Should An Off-Grid Site Hold?

There is no universal percentage. Reserve should be derived from named events, load priorities, resource uncertainty, backup availability, recovery time, battery limits, and the consequence of unmet demand. The policy should state when reserve may be used and how it is rebuilt.

What Should Remain After Site Acceptance?

Keep approved drawings, models, assumptions, settings, software versions, signal definitions, test procedures, timestamped results, deviations, corrections, baseline performance, training records, maintenance plans, spare lists, access credentials under controlled ownership, and responsibility for future changes.

In summary, off grid electricity storage succeeds when the electrical boundary, energy balance, power path, reserve policy, degraded states, and recovery plan agree. That gives decision-makers a system they can model, procure, witness, and operate—rather than a capacity figure that leaves the hardest interactions unresolved.
